Description
Ceratizit Article Number: 7118520001
Ceratizit Material Number: 14443527
Ceratizit Komet Number (Unpacked): 14443 527
Ceratizit Komet Number (Packed): 14443527
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

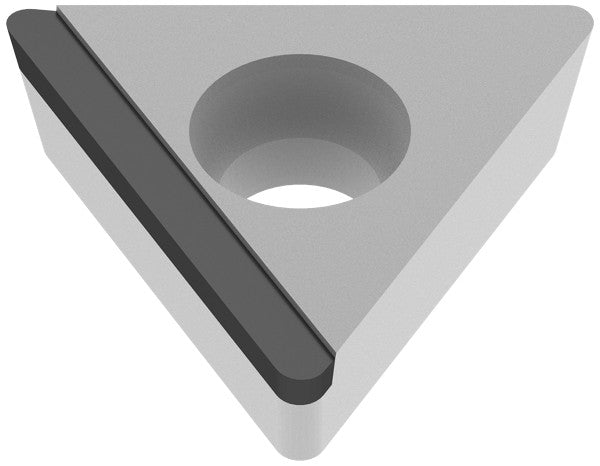

| Name | Ceratizit TCGT 090204FNN_A9 CTDPS30 CoreLine - PCD Turning indexable Insert - 7118520001 | |
| EDP # | 0760468 | |
| Weight (1 pc.) | 0.1 oz | 2.0 g |
| designation | 090204FN | |

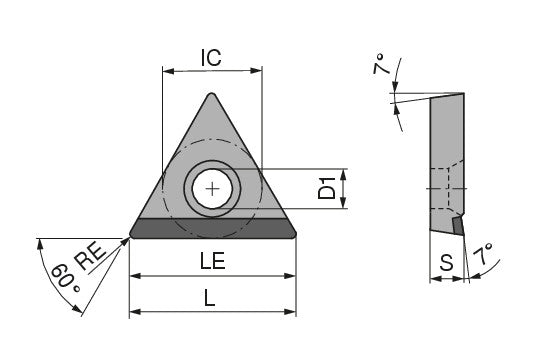

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3559" | 9.040 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| 181.5.1FNN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.3559" | 9.040 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TCGT 090204 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
