Description
Ceratizit Article Number: 7118920001
Ceratizit Material Number: 14443537
Ceratizit Komet Number (Unpacked): 14443 537
Ceratizit Komet Number (Packed): 14443537
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

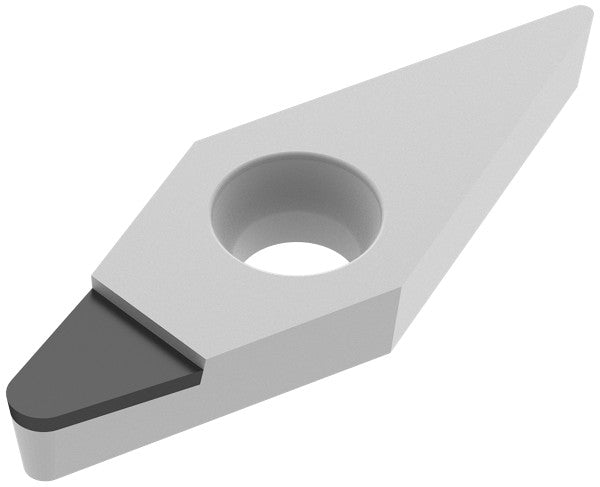

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit VCGT 070201FN_A4 CTDPS30 CoreLine - PCD Turning indexable Insert - 7118920001 | |
| EDP # | 0760478 | |
| Weight (1 pc.) | 0.1 oz | 1.9 g |
| designation | 070201FN | |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Cutting edge length / L | 0.2717" | 6.900 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1563" | 3.970 mm |
| 1.21.50FN | ||
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.1496" | 3.800 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | VCGT 070201 | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTDPS30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
