Description
Ceratizit Article Number: 6280006089
Ceratizit Material Number: 14451876
Ceratizit Komet Number (Unpacked): M05 03000
Ceratizit Komet Number (Packed): M0503000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

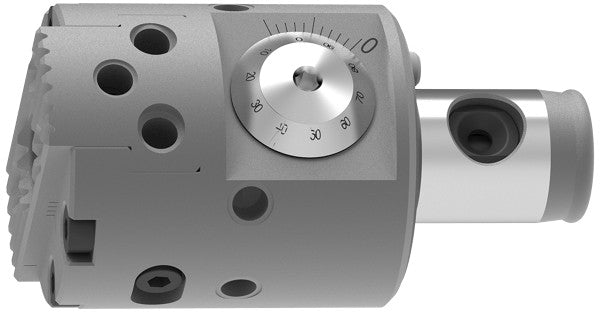

| Name | Ceratizit MK.HFM.FVK.ABS32.0,5-60 KOMET MicroKom hi.flex Micro Precision Adjustment Head 6280006089 | |
| EDP # | 0760543 | |
| Weight (1 pc.) | 11.0 oz | 318 g |

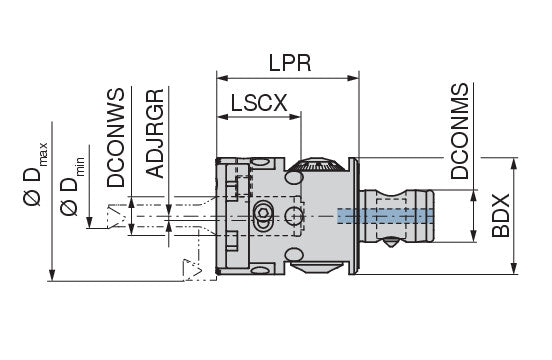

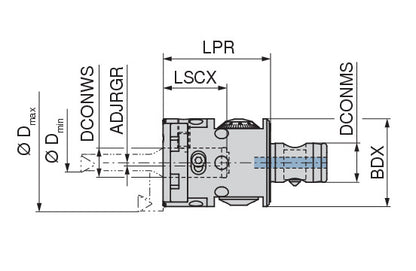

| Dmin - Dmax | 0.0197" - 2.3622" | 0.500 - 60.000 mm |
| Machine interface size | ABS 32 | |
| Clamping diameter (DCONWS) / DCONWS H7 | 0.4724" | 12.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Body diameter maximum / BDX | 1.4173" | 36.000 mm |
| Flange diameter / DF | 1.2598" | 32.000 mm |
| Protruding length / LPR | 1.7323" | 44.000 mm |
| Clamping length maximum machine side / LSCX | 1.0236" | 26.000 mm |
| Adjustment range radial - range / ADJRGR | -0.0098" - 0.0984" | -0.250 - 2.500 mm |
| nominal size / SZID | ABS 32 | |
| Overall length / OAL | 2.6378" | 67.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
