Description
Ceratizit Article Number: 6286104400
Ceratizit Material Number: 14471435
Ceratizit Komet Number (Unpacked): M05 90120
Ceratizit Komet Number (Packed): M0590120
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

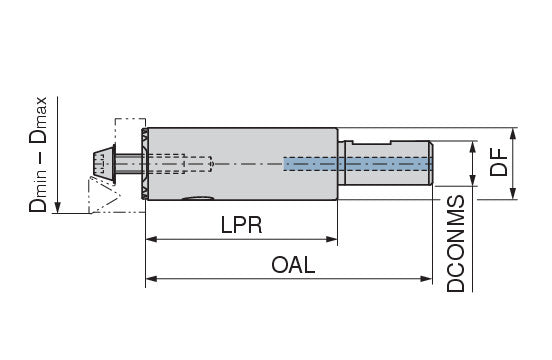

| Properties | ||
|---|---|---|
| Name | Ceratizit MK.HFM.KZK.12.25-44 SpinTools Serrated Body 6286104400 | |
| EDP # | 0760659 | |
| Weight (1 pc.) | 5.0 oz | 139 g |
| Product-Carbon-Footprint | B | |
| Cutting diameter minimum / DCN | 0.9843" | 25.000 mm |
| Mounting spigot diameter / DCONMS g6 | 0.4724" | 12.000 mm |
| Overall length / OAL | 3.0075" | 76.390 mm |
| Dmin - Dmax | 25 - 44 | |
| Protruding length / LPR | 2.0232" | 51.390 mm |
| Flange diameter / DF | 0.7480" | 19.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
