Description
Ceratizit Article Number: 6284501400
Ceratizit Material Number: 14471706
Ceratizit Komet Number (Unpacked): B05 80140
Ceratizit Komet Number (Packed): B0580140
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MK.HFM.BS.14.12.70 KOMET MicroKom - Boring Bar For hi.flex Micro 6284501400 | |
| EDP # | 0760662 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 68.0 g |

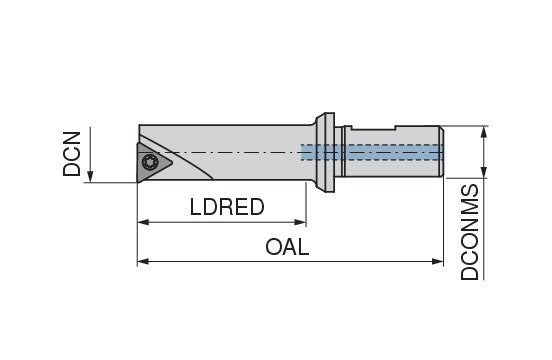

| Overall length / OAL | 2.7559" | 70.000 mm |
| Reduced body diameter length / LDRED | 1.5551" | 39.500 mm |
| Mounting spigot diameter / DCONMS g6 | 0.4724" | 12.000 mm |
| Insert | TO.X 0902.. | |
| Protruding length / LPR | 1.7717" | 45.000 mm |
| Flange diameter / DF | 0.7087" | 18.000 mm |
| Cutting diameter minimum / DCN | 0.5512" | 14.000 mm |
| Body diameter, reduced / BDRED | 0.4921" | 12.500 mm |
| Abbildung | 2 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
