Description
Ceratizit Article Number: 6284502000
Ceratizit Material Number: 14471711
Ceratizit Komet Number (Unpacked): B05 80200
Ceratizit Komet Number (Packed): B0580200
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

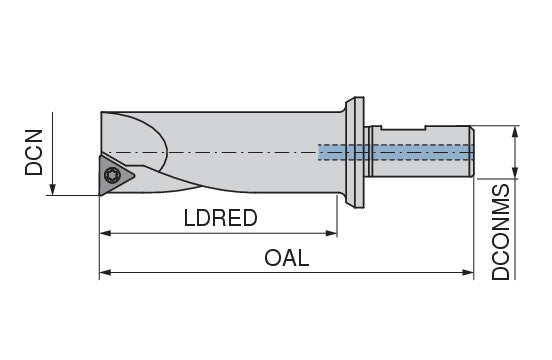

| Properties | ||
|---|---|---|
| Name | Ceratizit MK.HFM.BS.20.12.85 SpinTools - Boring Bar For hi.flex Micro 6284502000 | |
| EDP # | 0760663 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 134 g |
| Cutting diameter minimum / DCN | 0.7874" | 20.000 mm |
| Reduced body diameter length / LDRED | 2.1417" | 54.400 mm |
| Mounting spigot diameter / DCONMS g6 | 0.4724" | 12.000 mm |
| Insert | TO.X 0902.. | |
| Overall length / OAL | 3.3465" | 85.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Flange diameter / DF | 0.9843" | 25.000 mm |
| Body diameter, reduced / BDRED | 0.7185" | 18.250 mm |
| Abbildung | 3.0000" | 76.200 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
