Ceratizit D013.0000M H7 ASG3000 Reamax - High-speed reamers, Long - Mono 4060613000 (0760677)
Ceratizit D013.0000M H7 ASG3000 Reamax - High-speed reamers, Long - Mono 4060613000 (0760677)
Couldn't load pickup availability
Ceratizit Article Number: 4060613000
Ceratizit Material Number: 14473844
Ceratizit Komet Number (Unpacked): 56R.710130C0068
Ceratizit Komet Number (Packed): 56R710130C0068
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

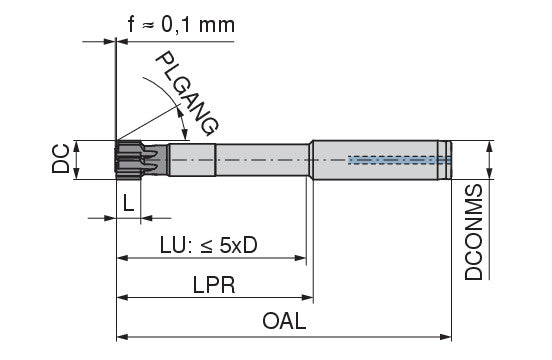

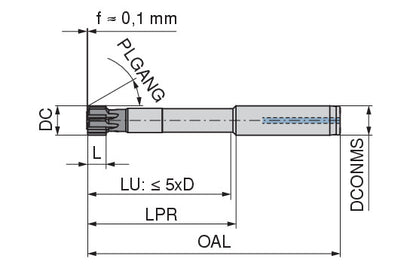

| Properties | ||
|---|---|---|
| Name | Ceratizit D013.0000M H7 ASG3000 Reamax - High-speed reamers, Long - Mono 4060613000 | |
| EDP # | 0760677 | |
| Weight (1 pc.) | 4.0 oz | 106 g |
| Cutting diameter / DC H7 | 0.5118" | 13.000 mm |
| Overall length / OAL | 6.2992" | 160.000 mm |
| Usable length / LU | 4.3307" | 110.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Protruding length / LPR | 4.5276" | 115.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
