Description
Ceratizit Article Number: 4040405130
Ceratizit Material Number: 14514713
Ceratizit Komet Number (Unpacked): 52T.450060C0023
Ceratizit Komet Number (Packed): 52T450060C0023
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

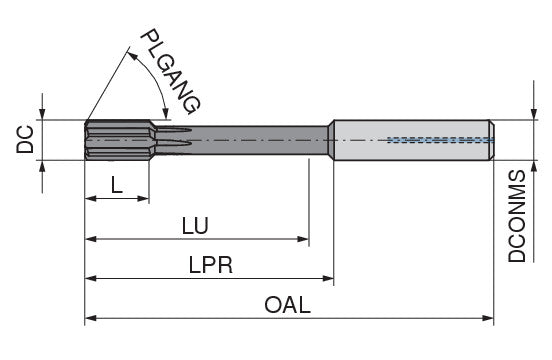

| Properties | ||
|---|---|---|
| Name | Ceratizit D005.1300MHT+0.0040/+0.0000 ASG2131 KOMET Fullmax - High-performance Machine reamers, Long 4040405130 | |
| EDP # | 0761046 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC +0,004/+0,005 | 0.2020" | 5.130 mm |
| Overall length / OAL | 2.9921" | 76.000 mm |
| Cutting edge length / L | 0.4724" | 12.000 mm |
| Usable length / LU | 1.3780" | 35.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBQ | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
