Description
Ceratizit Article Number: 1088953005
Ceratizit Material Number: 14515476
Ceratizit Komet Number (Unpacked): U70 65300
Ceratizit Komet Number (Packed): U7065300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon 40x68/W2942/53,0/145R KOMET - Indexable Insert Drill 1088953005 | |
| EDP # | 0761060 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Stainless Steel (Yellow) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 77.0 oz | 2189 g |

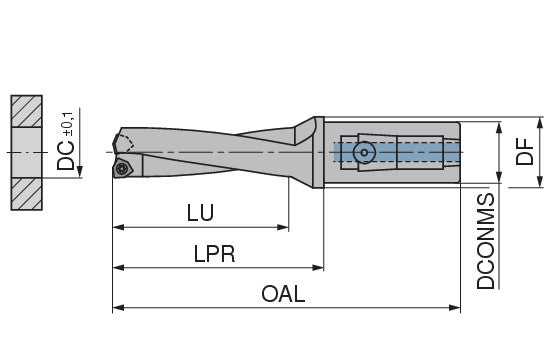

| Cutting diameter / DC | 2.0866" | 53.000 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 10.5512" | 268.000 mm |
| Protruding length / LPR | 7.8740" | 200.000 mm |
| Usable length / LU | 5.7087" | 145.000 mm |
| Insert | WOEX 080404 | |
| torque moment | 4.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
