Description
Ceratizit Article Number: 4062800007
Ceratizit Material Number: 14517287
Ceratizit Komet Number (Unpacked): 56R.930100C0141
Ceratizit Komet Number (Packed): 56R930100C0141
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

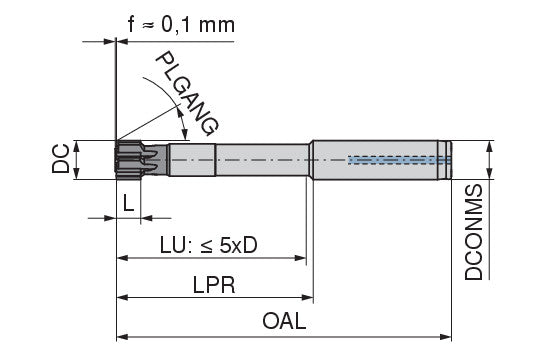

| Properties | ||
|---|---|---|
| Name | Ceratizit D010.1000M H6 ASG3000 KOMET Monomax - High-speed reamers, Long 4062800007 | |
| EDP # | 0761185 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H6 | 0.3976" | 10.100 mm |
| Overall length / OAL | 6.2992" | 160.000 mm |
| Usable length / LU | 4.5276" | 115.000 mm |
| Cutting edge length / L | 0.3937" | 10.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 4.5276" | 115.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DST | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
