Description
Ceratizit Article Number: 1589242195
Ceratizit Material Number: 14520406
Ceratizit Komet Number (Unpacked): V40 14210
Ceratizit Komet Number (Packed): V4014210
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon ABS50/W2934/1.656/3.386 R KOMET - Indexable Insert Drill 1589242195 | |
| EDP # | 0761220 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 14.0 oz | 400 g |

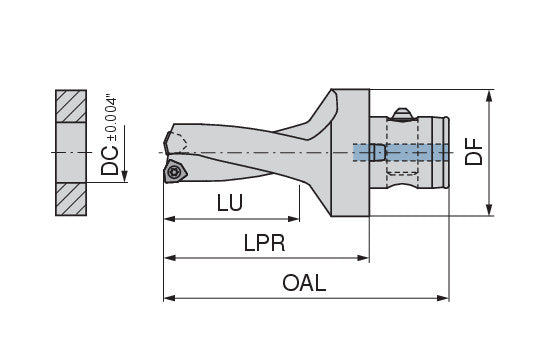

| Cutting diameter / DC | 1.6560" | 42.062 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 6.5750" | 167.005 mm |
| Protruding length / LPR | 5.3545" | 136.005 mm |
| Usable length / LU | 3.3860" | 86.004 mm |
| Insert | WOEX 06T304 | |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
