Description
Ceratizit Article Number: 1589339795
Ceratizit Material Number: 14520447
Ceratizit Komet Number (Unpacked): V40 23970
Ceratizit Komet Number (Packed): V4023970
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Trigon ABS50/W2934/1.562/4.724 R KOMET - Indexable Insert Drill 1589339795 | |
| EDP # | 0761252 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 45.0 oz | 1288 g |

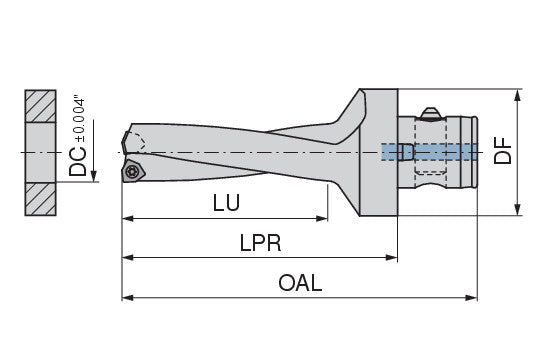

| Cutting diameter / DC | 1.5620" | 39.675 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 7.9130" | 200.990 mm |
| Protruding length / LPR | 6.6925" | 169.990 mm |
| Usable length / LU | 4.7240" | 119.990 mm |
| Insert | WOEX 06T304 | |
| torque moment | 2.8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
