Description
Ceratizit Article Number: 5481705800
Ceratizit Material Number: 14544278
Ceratizit Komet Number (Unpacked): 1J81000100159X
Ceratizit Komet Number (Packed): 1J81000100159X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

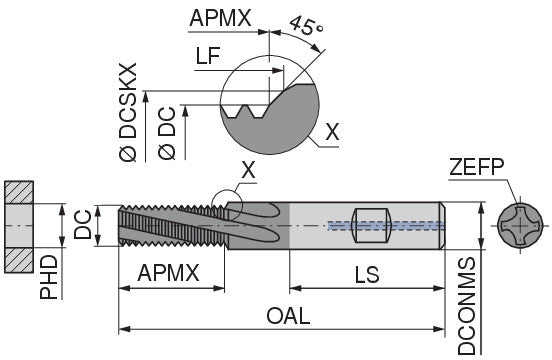

| Properties | ||
|---|---|---|
| Name | Ceratizit SFSE.G5/8-14.HB.18.IK TI500 MonoThread Thread Milling Cutter With Chamfer Facet 5481705800 | |
| EDP # | 0761408 | |
| Weight (1 pc.) | 11.0 oz | 303 g |
| Product-Carbon-Footprint | B | |
| Thread | G 5/8-14 | |
| Thread pitch / TP | 0.0714" | 1.814 mm |
| Cutting diameter / DC | 0.7067" | 17.950 mm |
| Threads per inch / TPI | 14 | |
| Depth of cut maximum / APMX | 1.9488" | 49.500 mm |
| Shank length / LS | 1.8898" | 48.000 mm |
| Overall length / OAL | 4.3307" | 110.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7087" | 18.000 mm |
| Peripheral effective cutting edge count / ZEFP | 5 | |
| Premachined hole diameter / PHD | 0.8268" | 21.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
