Description
Ceratizit Article Number: 5481803400
Ceratizit Material Number: 14544301
Ceratizit Komet Number (Unpacked): 1J81000100167X
Ceratizit Komet Number (Packed): 1J81000100167X
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

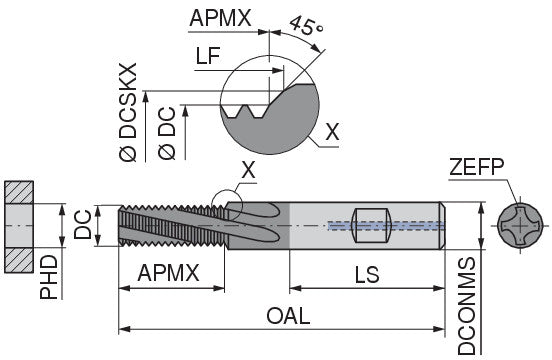

| Properties | ||
|---|---|---|
| Name | Ceratizit SFSE.UNC3/4-10.HB.20.IK TI500 MonoThread Thread Milling Cutter With Chamfer Facet 5481803400 | |
| EDP # | 0761431 | |
| Weight (1 pc.) | 12.0 oz | 333 g |
| Product-Carbon-Footprint | B | |
| Thread | UNC 3/4-10 | |
| Thread pitch / TP | 0.1000" | 2.540 mm |
| Cutting diameter / DC | 0.5984" | 15.200 mm |
| Threads per inch / TPI | 10 | |
| Depth of cut maximum / APMX | 1.6220" | 41.200 mm |
| Shank length / LS | 1.9685" | 50.000 mm |
| Overall length / OAL | 4.3307" | 110.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Countersunk diameter, max / DCSKX | 0.7618" | 19.350 mm |
| Functional length / LF | 1.7177" | 43.630 mm |
| Peripheral effective cutting edge count / ZEFP | 5 | |
| Premachined hole diameter / PHD | 0.6496" | 16.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
