Description
Ceratizit Article Number: 4065115870
Ceratizit Material Number: 14558849
Ceratizit Komet Number (Unpacked): 56R.170150C0107
Ceratizit Komet Number (Packed): 56R170150C0107
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

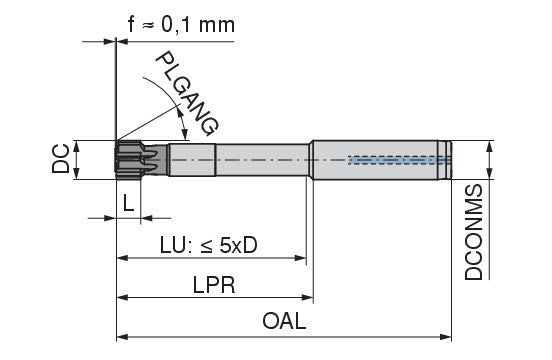

| Properties | ||
|---|---|---|
| Name | Ceratizit D015.8700M H8 ASG0706 KOMET Monomax - High-speed reamers, Long 4065115870 | |
| EDP # | 0761489 | |
| Weight (1 pc.) | 4.0 oz | 122 g |
| Cutting diameter / DC H7 | 0.6248" | 15.870 mm |
| Overall length / OAL | 6.2992" | 160.000 mm |
| Usable length / LU | 4.5276" | 115.000 mm |
| Cutting edge length / L | 0.3937" | 10.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 4.5276" | 115.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBC | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
