Description
Ceratizit Article Number: 4047511020
Ceratizit Material Number: 14565512
Ceratizit Komet Number (Unpacked): 52G.550110C0014
Ceratizit Komet Number (Packed): 52G550110C0014
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D011.0200MHT+0.0050/+0.0000 ASG2360 KOMET Fullmax - High-performance Machine reamers, Long 4047511020 | |
| EDP # | 0761506 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

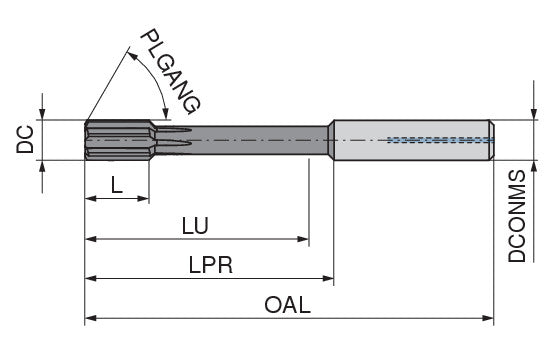

| Cutting diameter / DC +0,004/+0,005 | 0.4339" | 11.020 mm |
| Overall length / OAL | 5.1181" | 130.000 mm |
| Cutting edge length / L | 0.7874" | 20.000 mm |
| Usable length / LU | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 3.3465" | 85.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBF-A | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
