Zedaro GRNWIZZER-5.000R0.00-25.0TUR38.1-G30CG1 (0761625)
Zedaro GRNWIZZER-5.000R0.00-25.0TUR38.1-G30CG1 (0761625)
Couldn't load pickup availability
Zedaro UID: 0761625
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

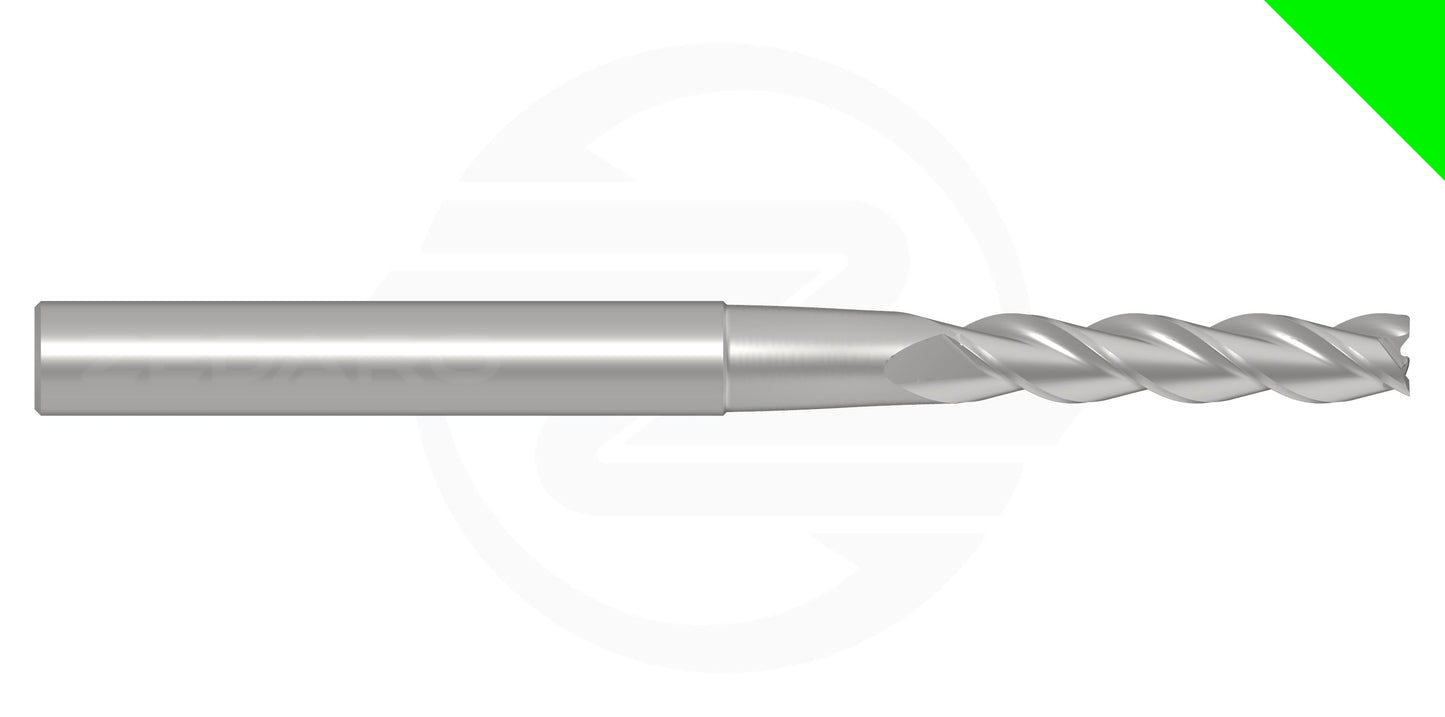

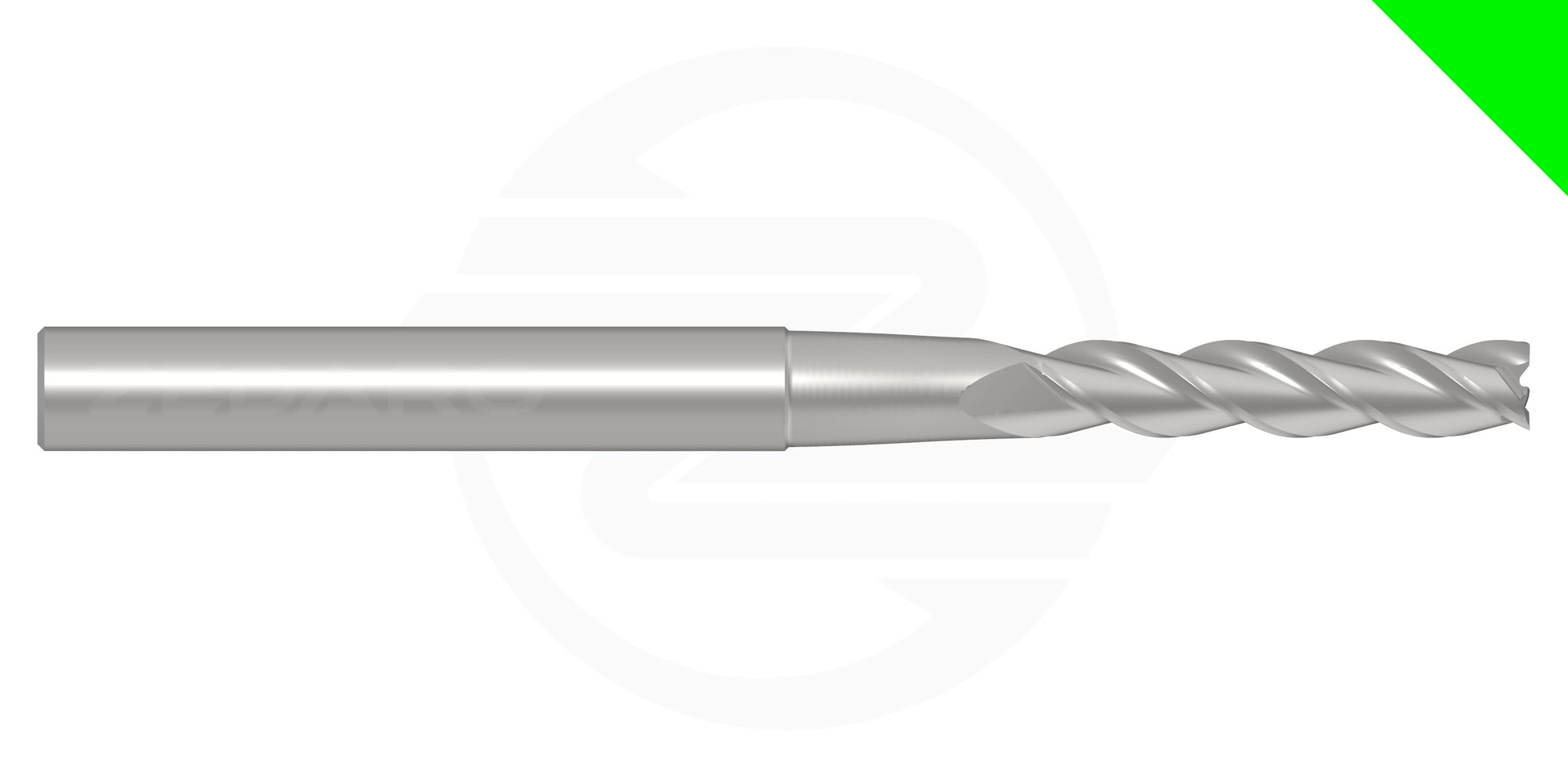

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNWIZZER-5.000R0.00-25.0TUR38.1-G30CG1 | |
| EDP # | 0761625 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 37.0 g |
| Cutting Diameter | 0.1969" | 5.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Application | Finish Face Milling <20k RPM (Wizzer) | |
| Form | R-FLAT | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.9843" | 25.000 mm |
| Overall Length | 3.0000" | 76.200 mm |
| Reach | 0.9843" | 25.000 mm |
| Minimum Extension | 1.5000" | 38.100 mm |
| Maximum Extension | 2.5000" | 63.500 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Wizzer' line is a tight-tolerance finishing tool which is intended for facing; primarily using the face of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'TUR' refers to the bird species 'Turkey'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
