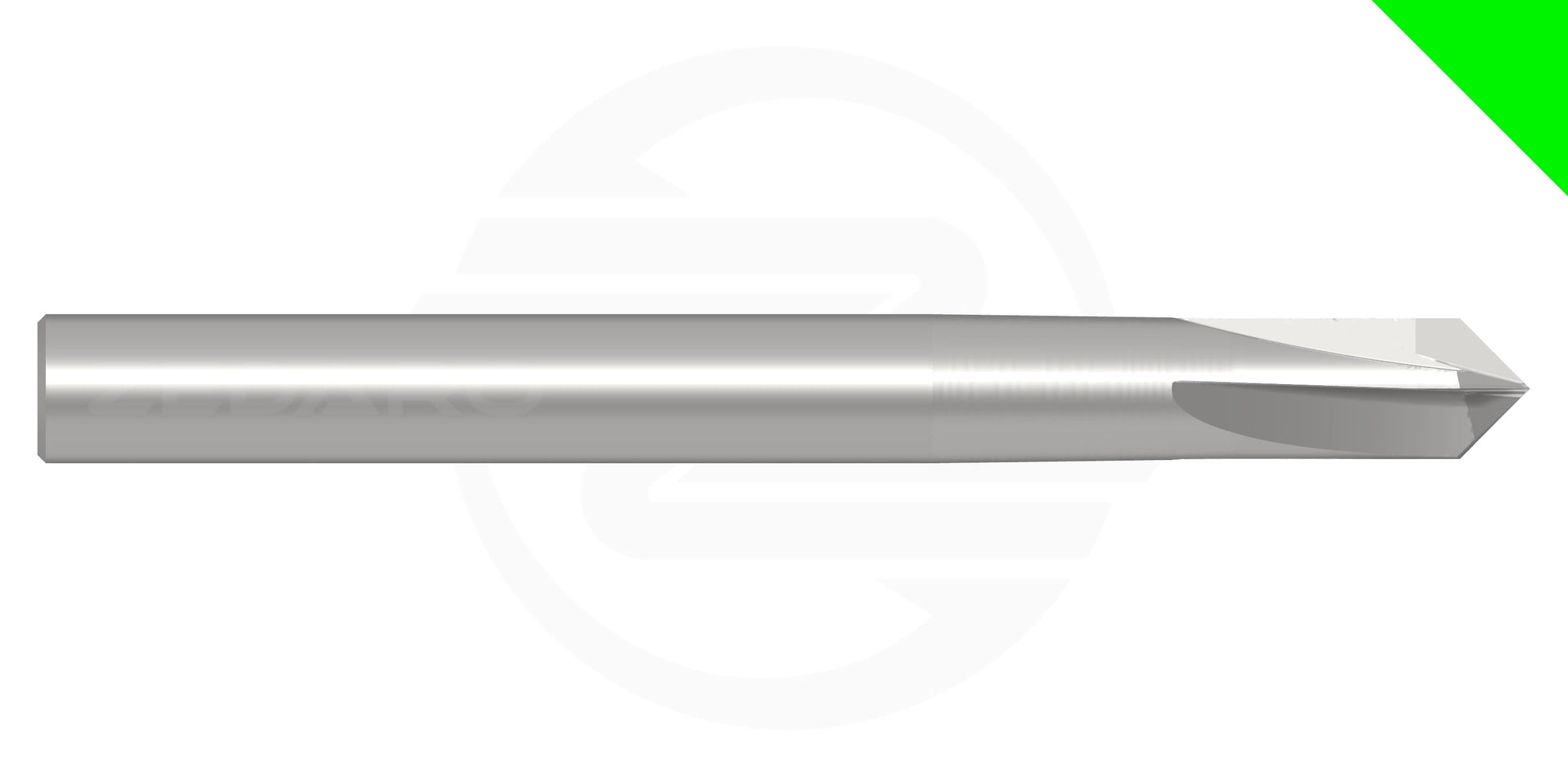

Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Engraver' line is for engraving, and is also suitable for chamfering and deburring.
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
| Tool Properties | ||
|---|---|---|

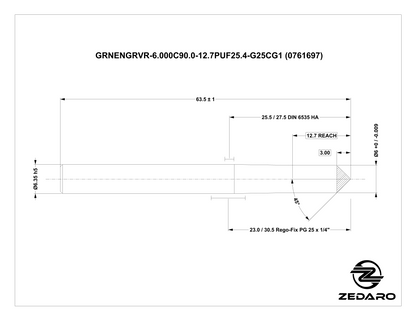

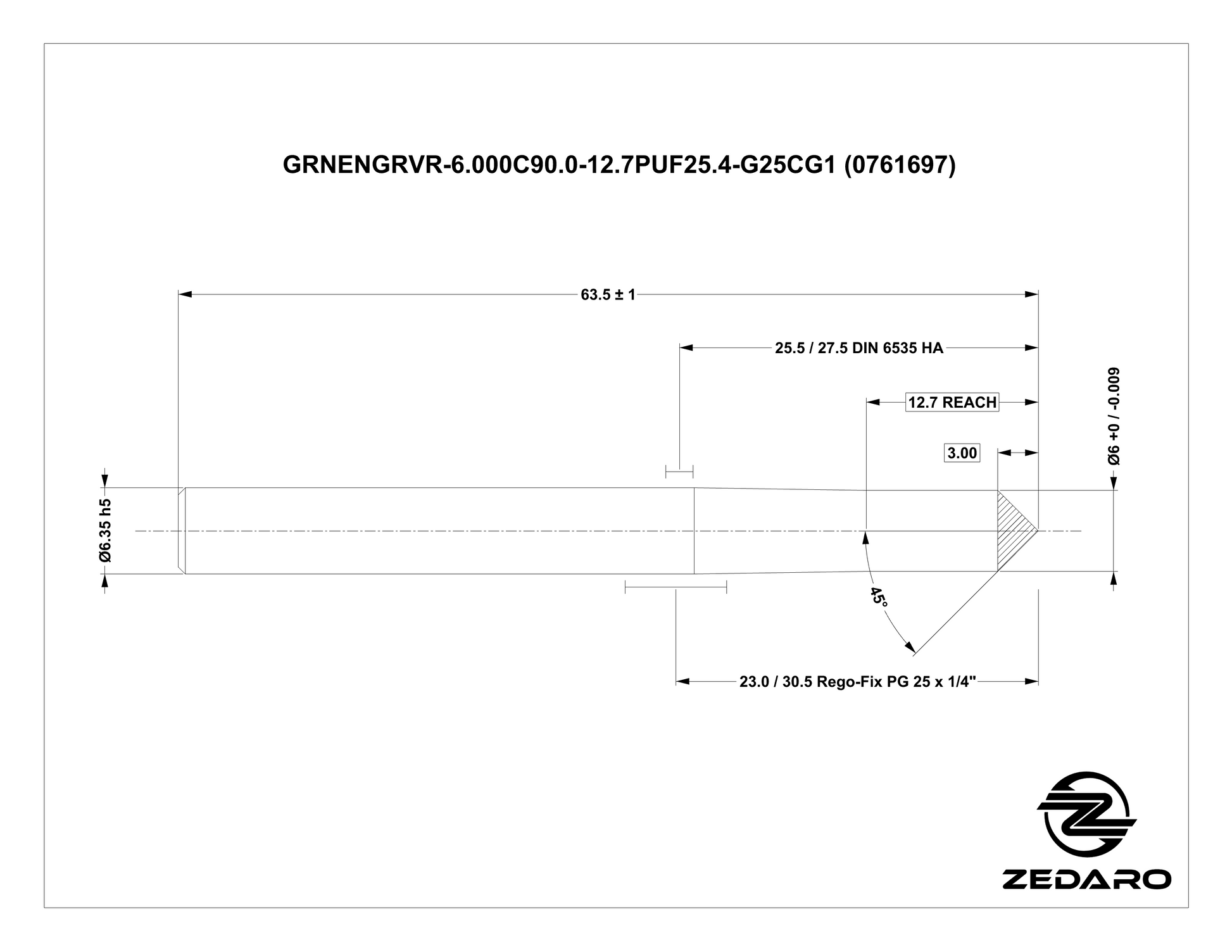

| Name | GRNENGRVR-6.000C90.0-12.7PUF25.4-G25CG1 | |
| EDP # | 0761697 | |
| Material | Wrought Aluminum | Application | Finish Chamfer/Deburr/Engrave (Engraver) |
| Form | Chamfer | |
| Cutting Diameter | 0.2362" | 6.000 mm |
| Total Tip Angle | 90.00° | |
| Taper per Side | 45.00° | |
| Length of Cut | 0.1181" | 3.000 mm |
| Reach | 0.5000" | 12.700 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h5 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
