Zedaro GRNPOINTR-0.600R0.30-0.90FAL25.4-G25CG1 (0761698)
Zedaro GRNPOINTR-0.600R0.30-0.90FAL25.4-G25CG1 (0761698)
Couldn't load pickup availability
Zedaro UID: 0761698
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

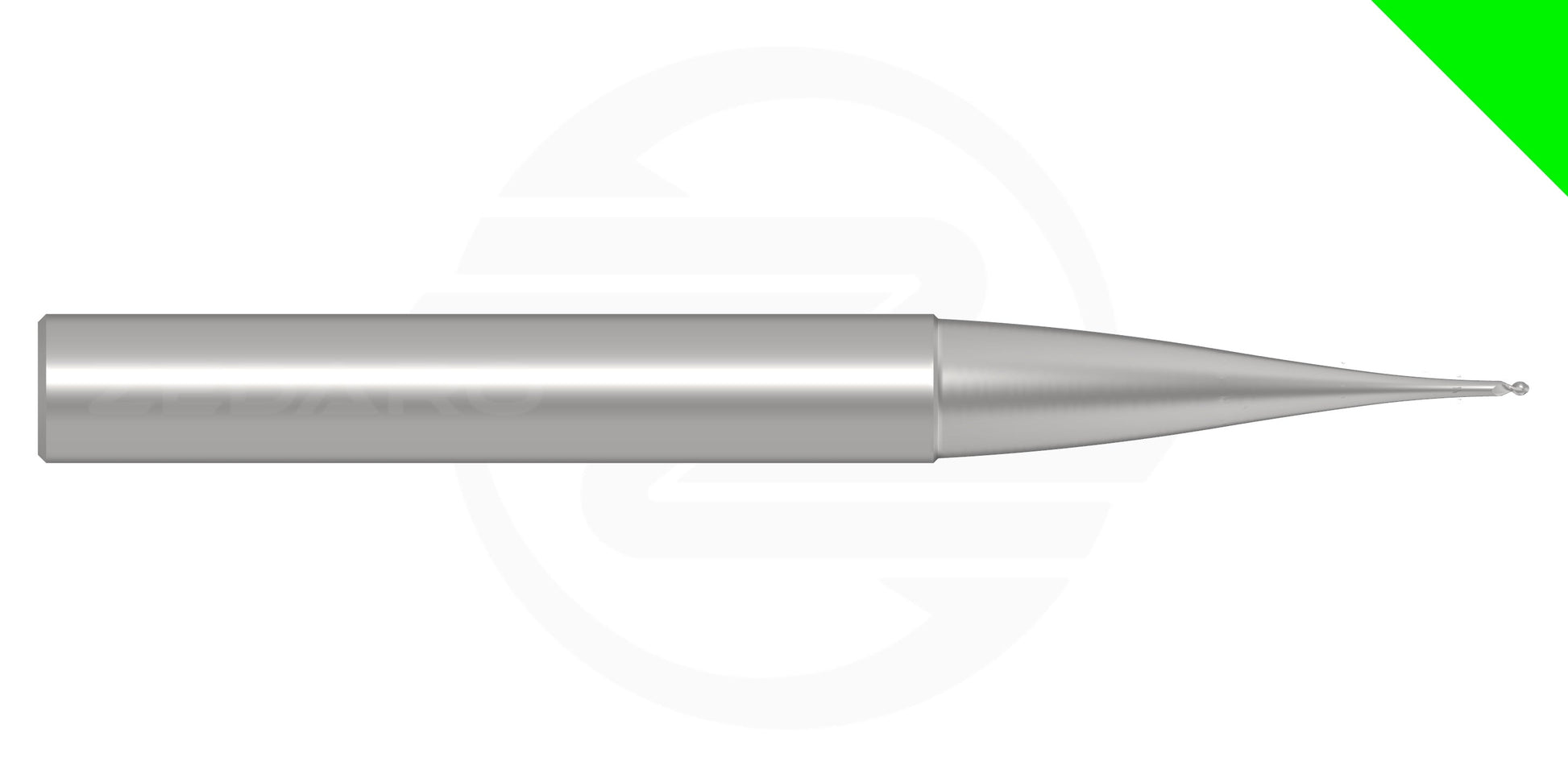

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

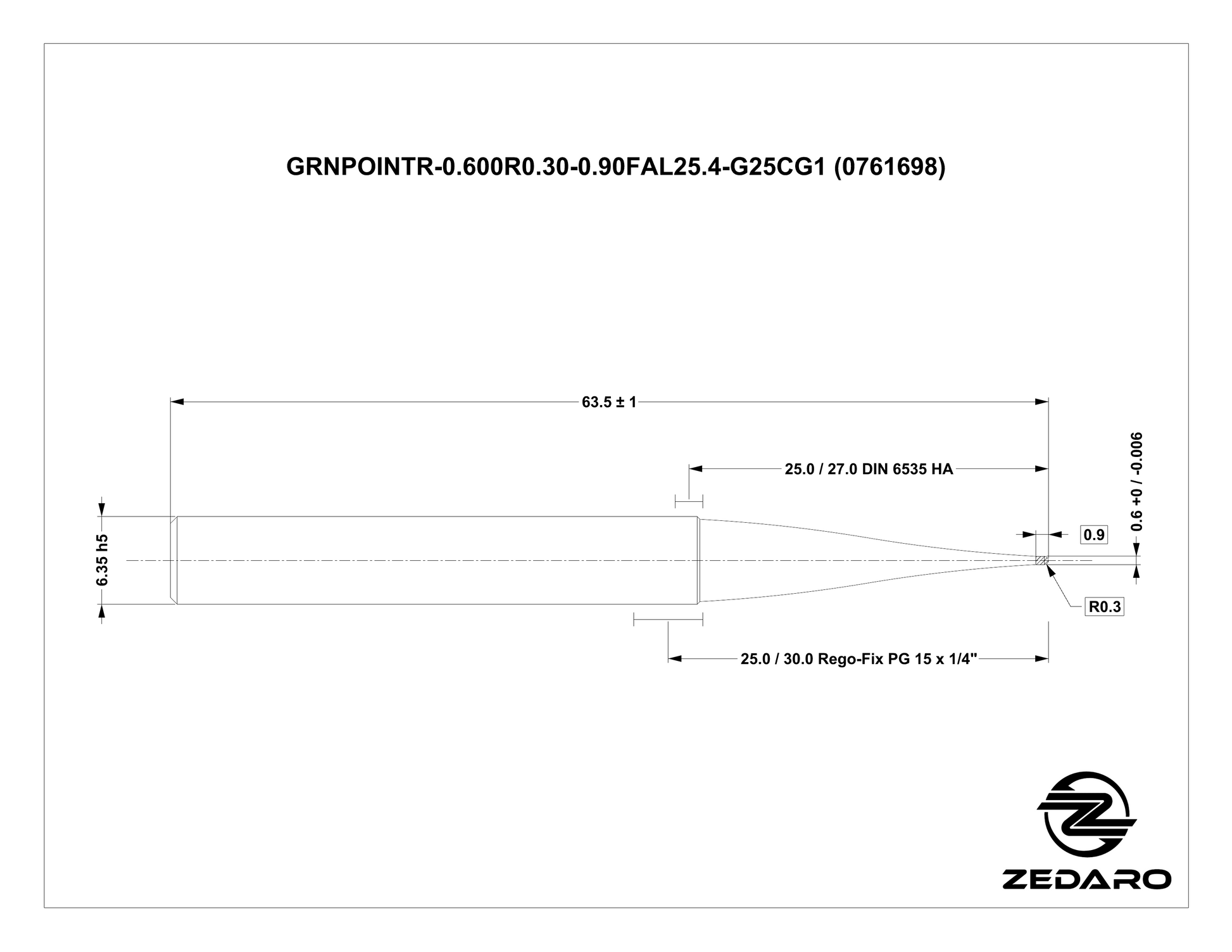

| Properties | ||
|---|---|---|
| Name | Zedaro GRNPOINTR-0.600R0.30-0.90FAL25.4-G25CG1 | |
| EDP # | 0761698 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.0236" | 0.600 mm |
| Corner Radius | 0.0118" | 0.300 mm |
| Application | Finish 3D Point Milling >20k RPM (Pointer) | |
| Form | R-BALL | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.0354" | 0.900 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.0354" | 0.900 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Pointer' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'FAL' refers to the bird species 'Falcon'.
