Zedaro GRNDRIFTR-12.00S3.50-25.0FLA30.5-N30CG1 (0761703)
Zedaro GRNDRIFTR-12.00S3.50-25.0FLA30.5-N30CG1 (0761703)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0761703
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

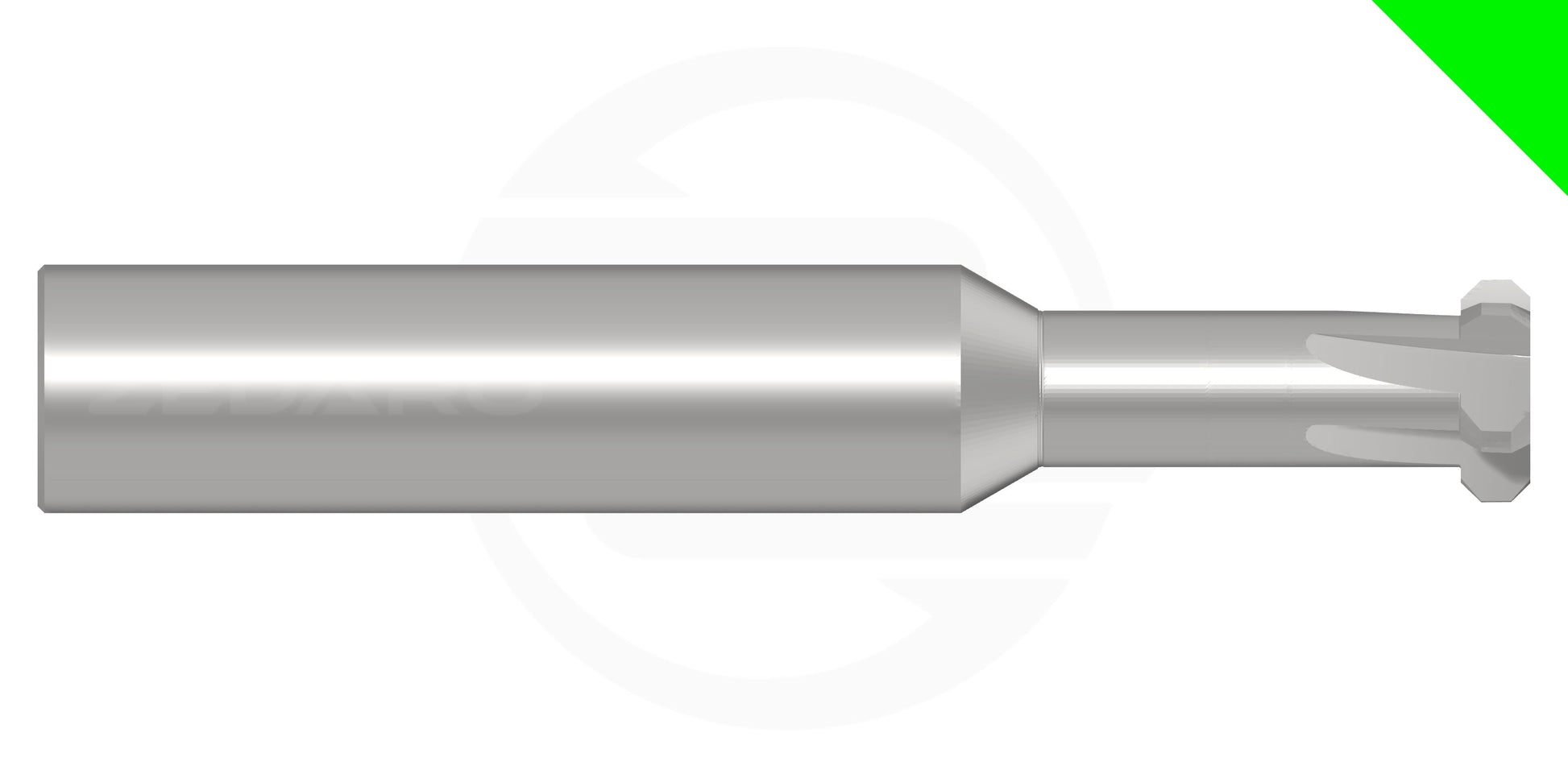

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

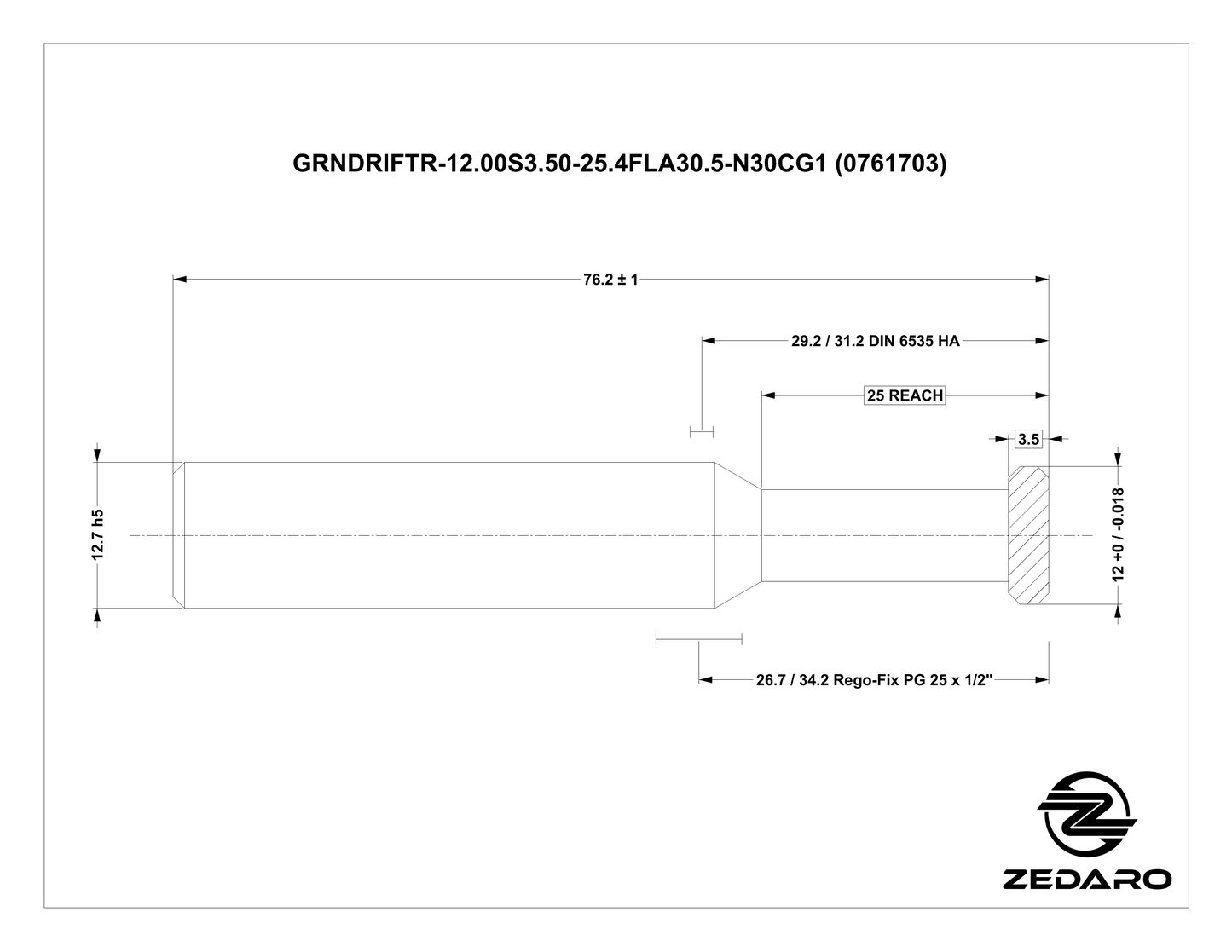

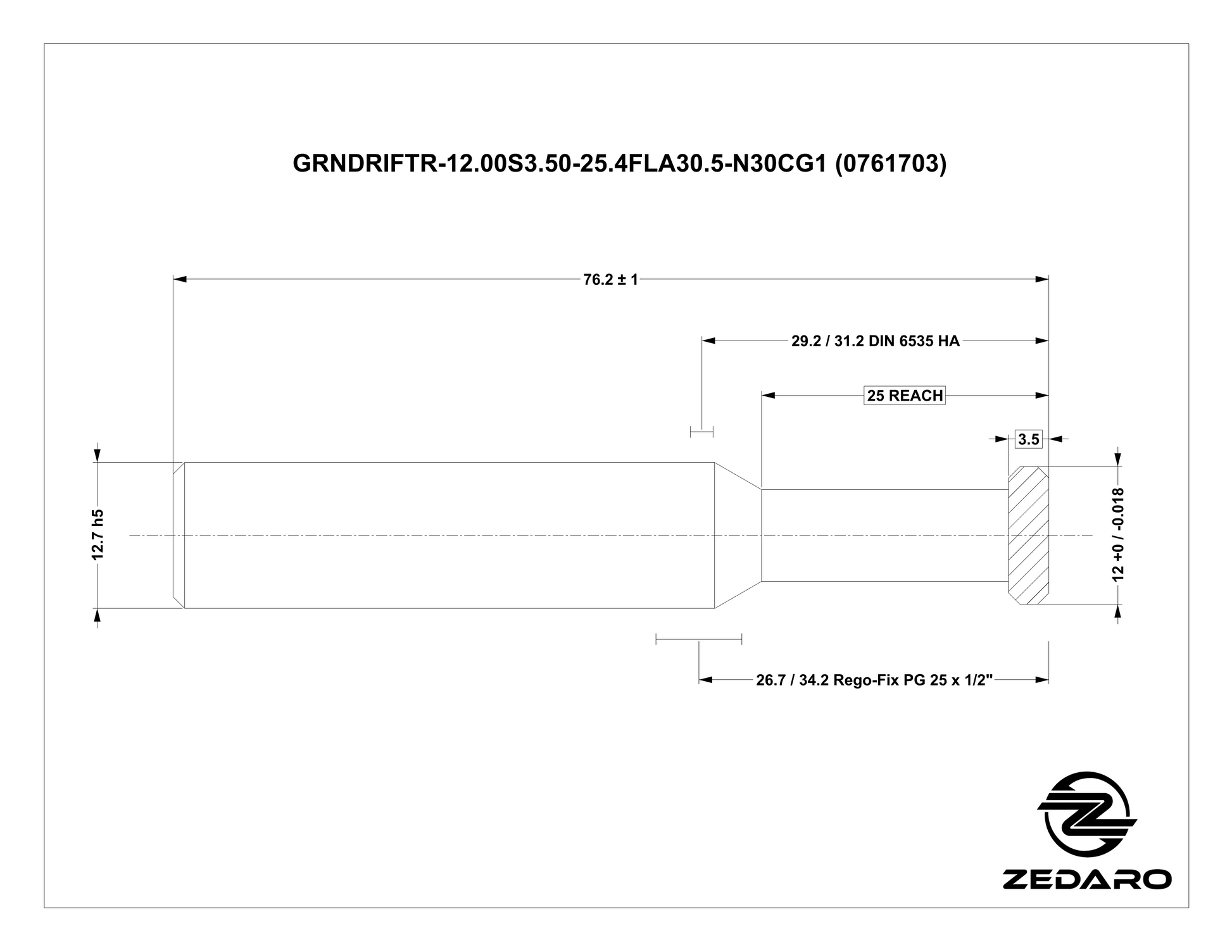

| Properties | ||
|---|---|---|
| Name | Zedaro GRNDRIFTR-12.00S3.50-25.0FLA30.5-N30CG1 | |
| EDP # | 0761703 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 5.0 oz | 150 g |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Slot Thickness | 0.1378" | 3.500 mm |
| Application | General T-Slot Milling (Drifter) | |
| Form | Slot Mill | |
| Shank Diameter (h5) | 0.5000" | 12.700 mm |
| Cutting Edges | 5 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.1378" | 3.500 mm |
| Overall Length | 3.0000" | 76.200 mm |
| Reach | 0.9843" | 25.000 mm |
| Minimum Extension | 1.2008" | 30.500 mm |
| Maximum Extension | 2.0000" | 50.800 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.
- 'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
- The code 'FLA' refers to the bird species 'Flamingo'.
