Description
The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
The 'Former' line consists of form tools with tighter profile tolerances than a typical finishing endmill. These tools are intended to be used to impart complex and/or highly accurate forms to the workpiece in a single final pass.
'A' form tools utilize a convex circle segment profile to allow organic 3D milling with a much larger effective radius than traditional ball-milling tools can achieve.
| Tool Properties | ||
|---|---|---|

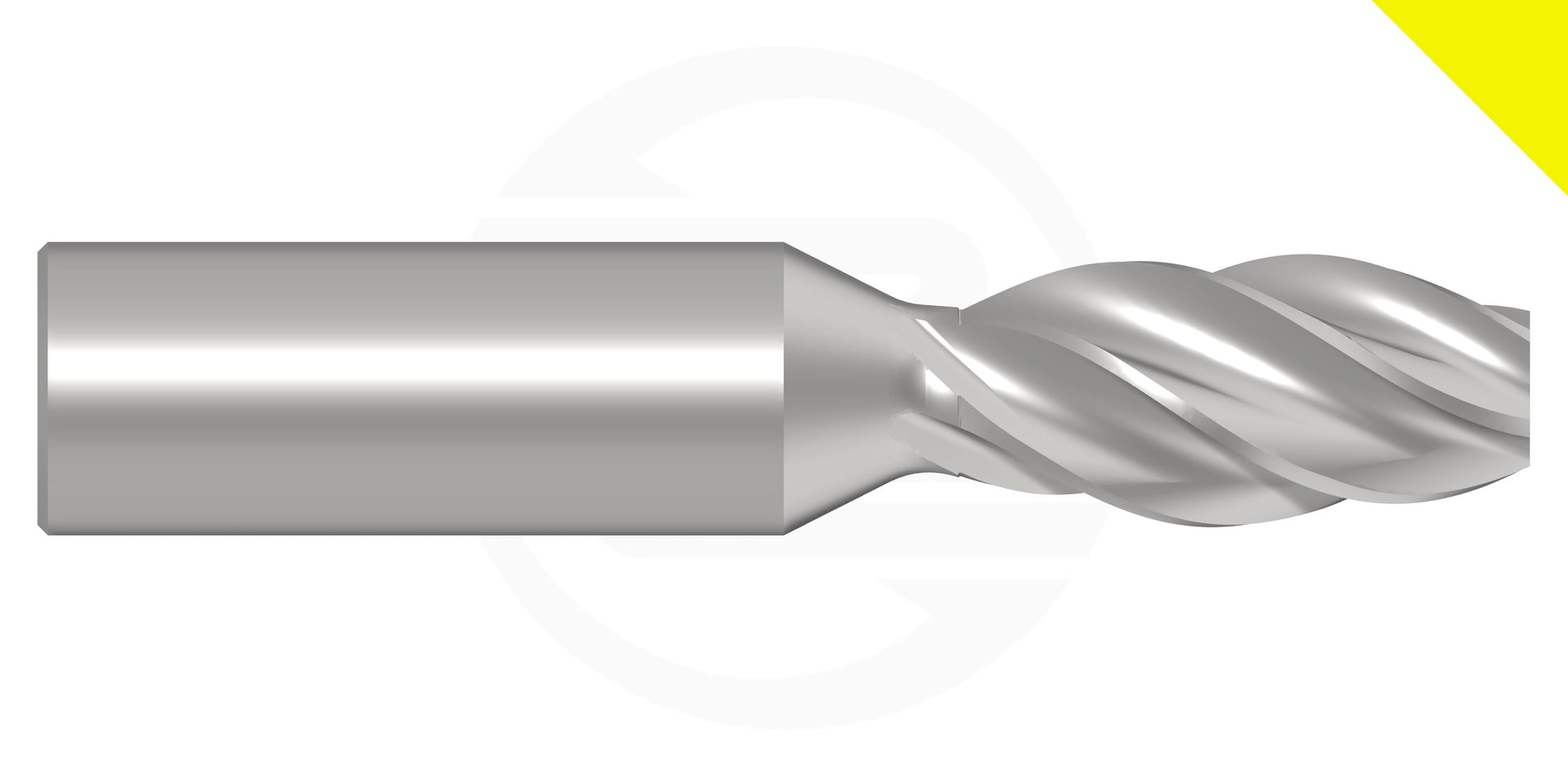

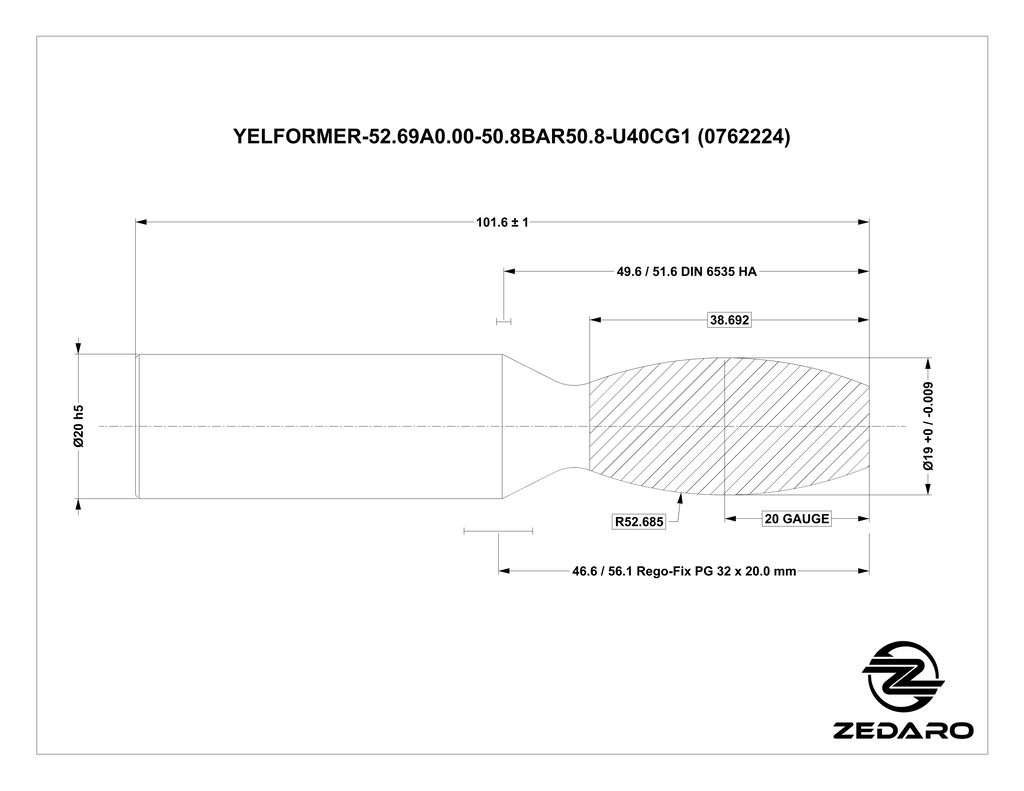

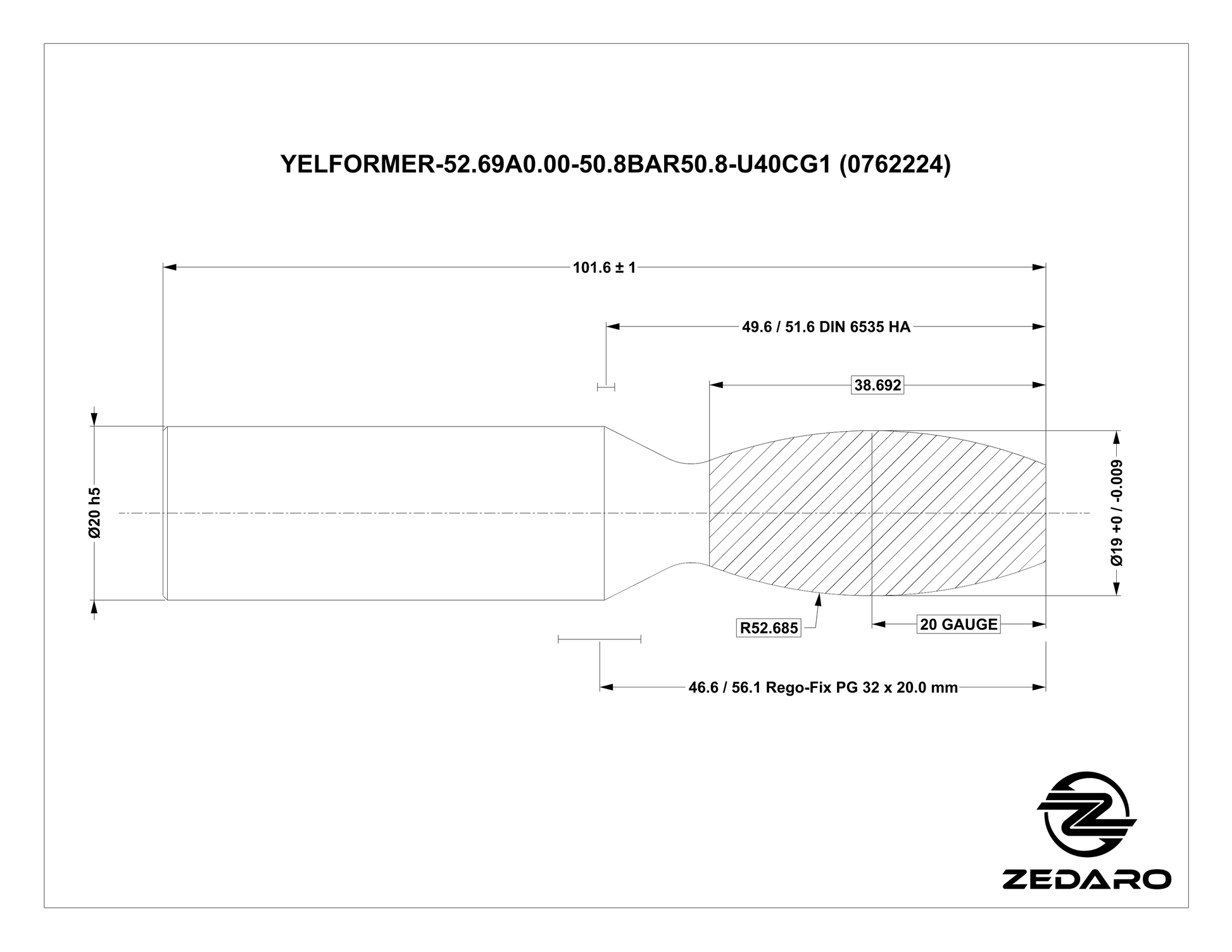

| Name | YELFORMER-52.69A0.00-50.8BAR50.8-U40CG1 | |
| EDP # | 0762224 | |
| Material | Stainless Steel | Application | Finish Tight Tolerance Form Tool (Former) |
| Form | Convex Circle Segment | |
| Max Radius | 2.0742" | 52.685 mm |
| Min Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.4173" | 36.000 mm |
| Reach | 2.0000" | 50.800 mm |
| Minimum Extension | 2.0" | 50.8 mm |
| Maximum Extension | 2.4" | 61.6 mm |
| Shank Diameter h6 | 0.7874" | 20.000 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 5 | |
| Tolerance Class | h5 | |
