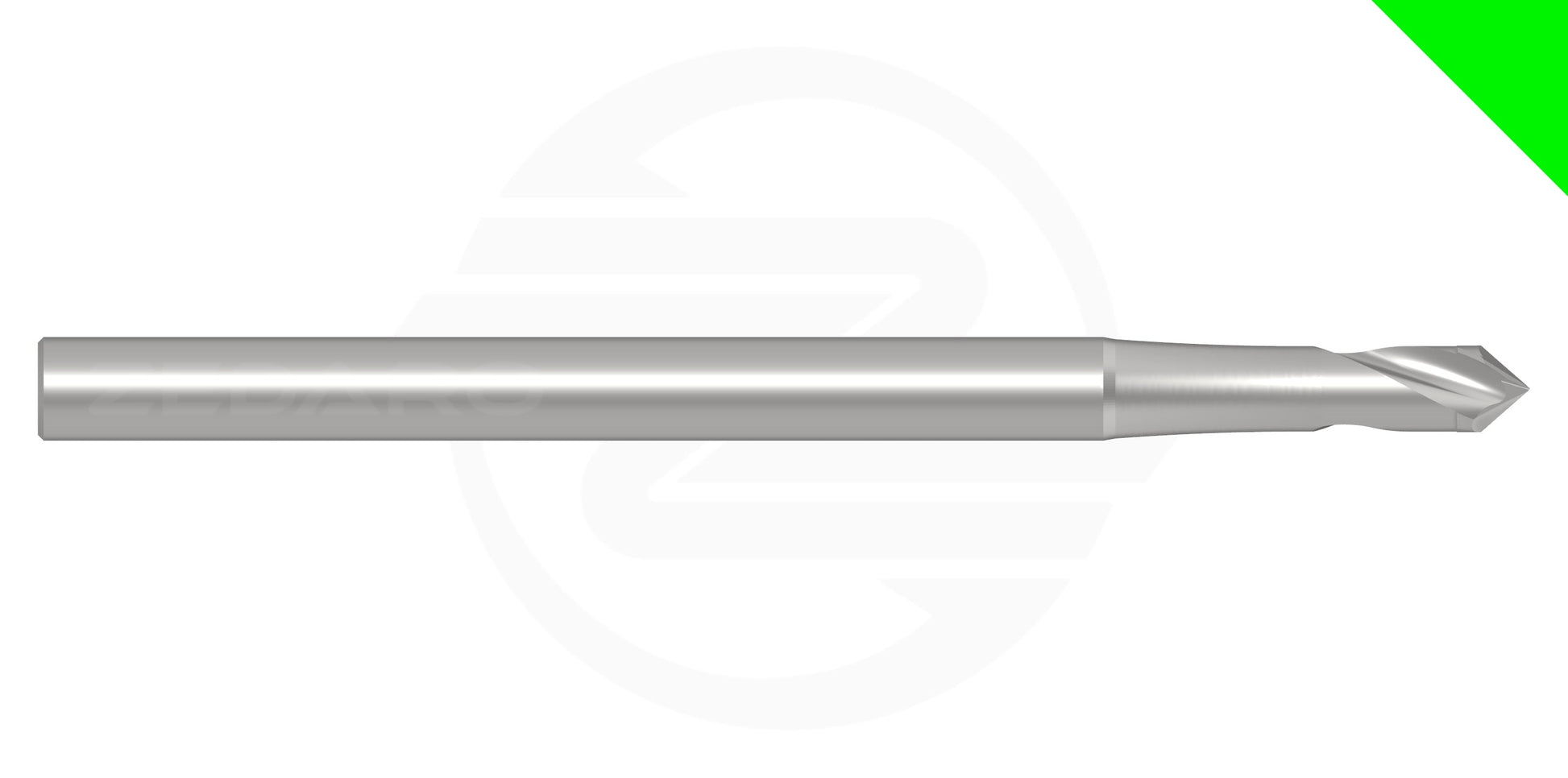

Zedaro GRNPECKER-5.700D4.50-12.7PEK25.4-G36CG1 (0762265)
Zedaro GRNPECKER-5.700D4.50-12.7PEK25.4-G36CG1 (0762265)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files
Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0762265
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

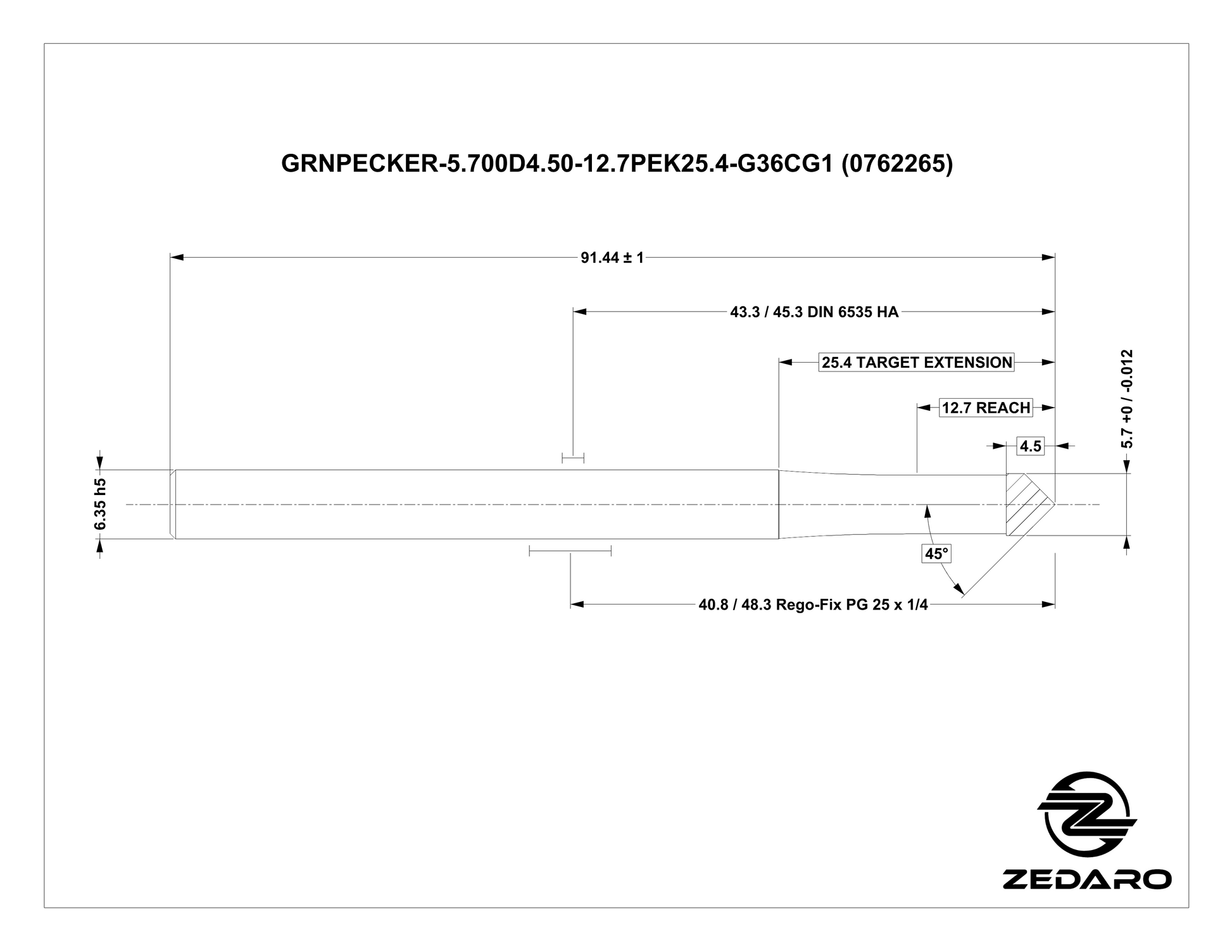

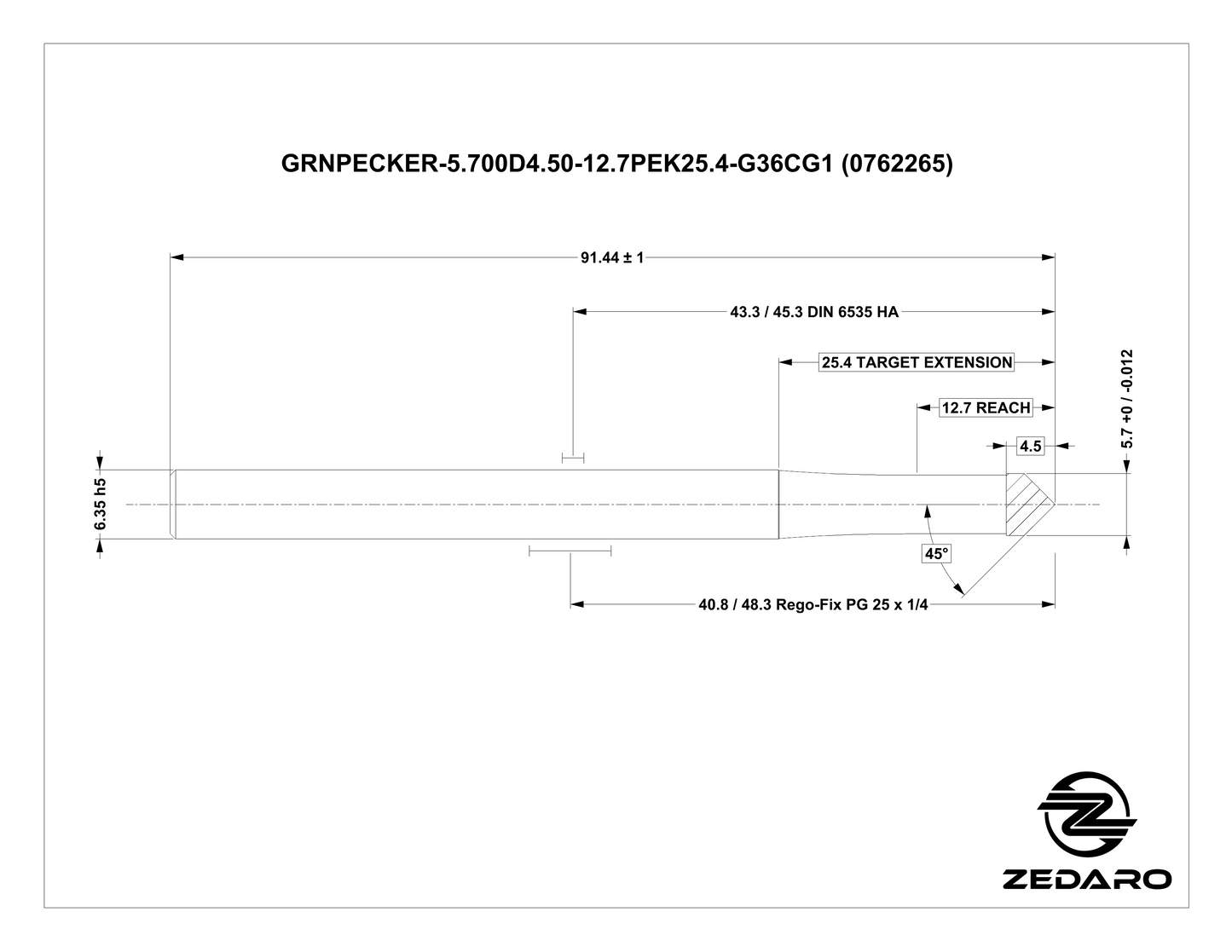

| Properties | ||
|---|---|---|
| Name | Zedaro GRNPECKER-5.700D4.50-12.7PEK25.4-G36CG1 | |
| EDP # | 0762265 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 2.0 oz | 45.0 g |
| Cutting Diameter | 0.2244" | 5.700 mm |
| Cutting Length | 0.1772" | 4.500 mm |
| Application | General Drilling, Tapping (Pecker) | |
| Form | Drill | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.1772" | 4.500 mm |
| Overall Length | 3.6000" | 91.440 mm |
| Reach | 0.5000" | 12.700 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 3.0984" | 78.700 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Pecker' line is for general drilling and tapping.
- 'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
- The code 'PEK' refers to the bird species 'Woodpecker'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
