Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Striper' line is a general purpose roughing and finishing designed for machine tools with spindles reach up to 20K rpm. The design incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions and our special blend of fully variable geometry (including helix, pitch, spacing, location and size).
'N' form tools are simple corner-chamfered end mills. These are very similar to 'R' but with a chamfer instead of a radius. Note that square/flat end mills are classified under the 'R' form only.
| Tool Properties | ||
|---|---|---|

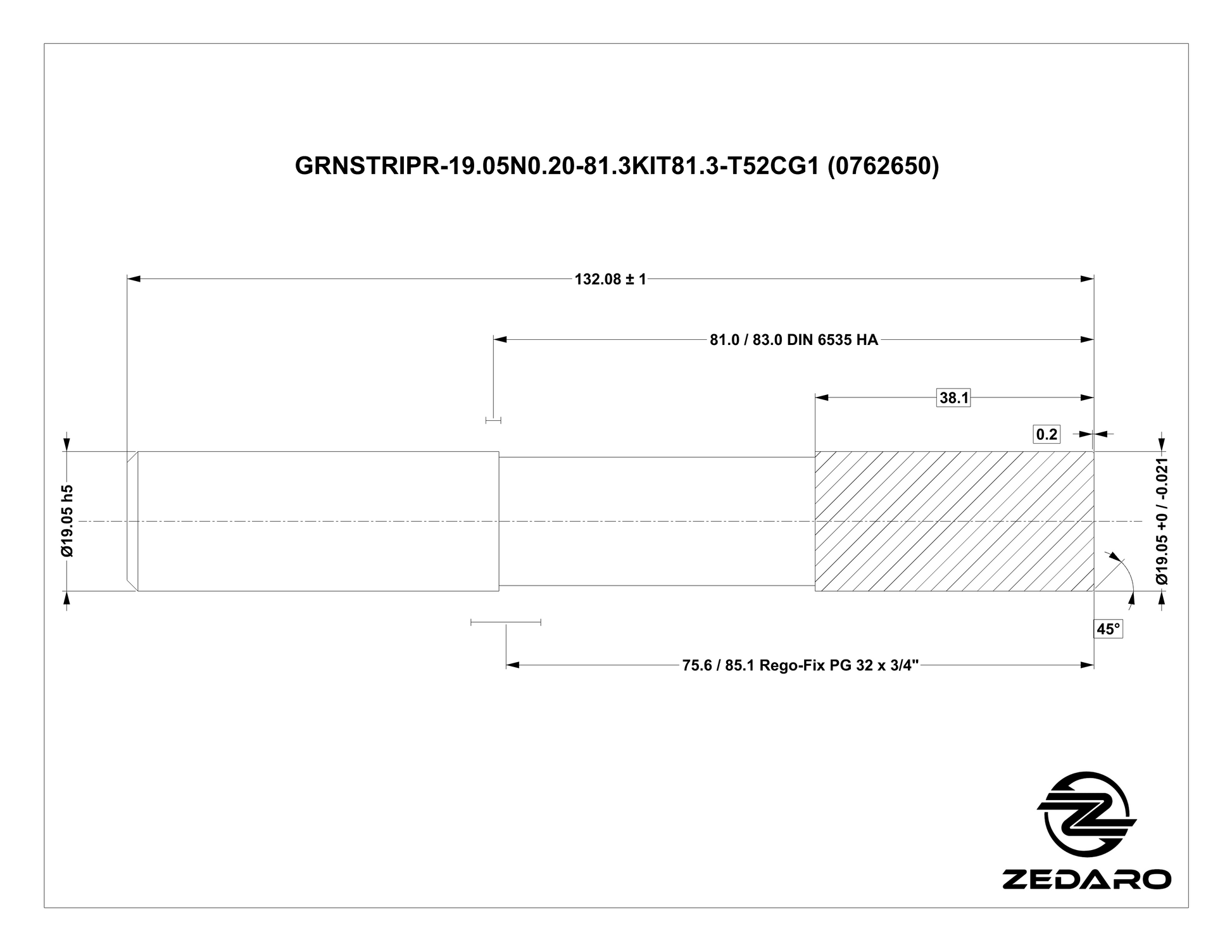

| Name | GRNSTRIPR-19.05N0.20-81.3KIT81.3-T52CG1 | |
| EDP # | 0762650 | |
| Material | Wrought Aluminum | Application | General Milling <20k RPM (Striper) |
| Form | Corner Chamfered | |
| Cutting Diameter | 0.7500" | 19.050 mm |
| Corner Size (45 deg.) | 0.0079" | 0.200 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.5000" | 38.100 mm |
| Reach | 3.2008" | 81.300 mm |
| Minimum Extension | 3.2" | 81.3 mm |
| Maximum Extension | 4.1" | 103.5 mm |
| Shank Diameter h5 | 0.7500" | 19.050 mm |
| Overall Length | 5.2" | 133 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
