Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.

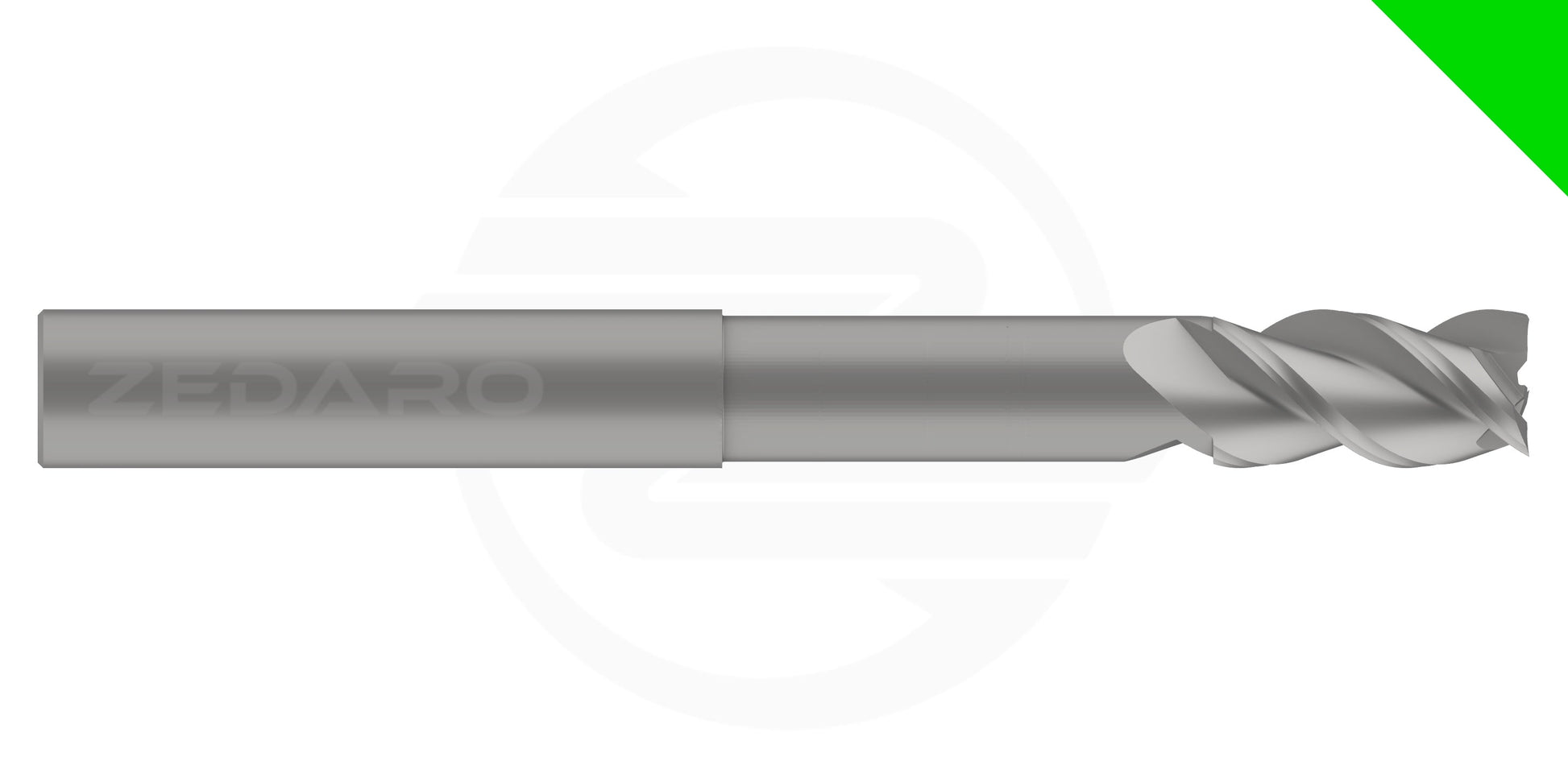

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

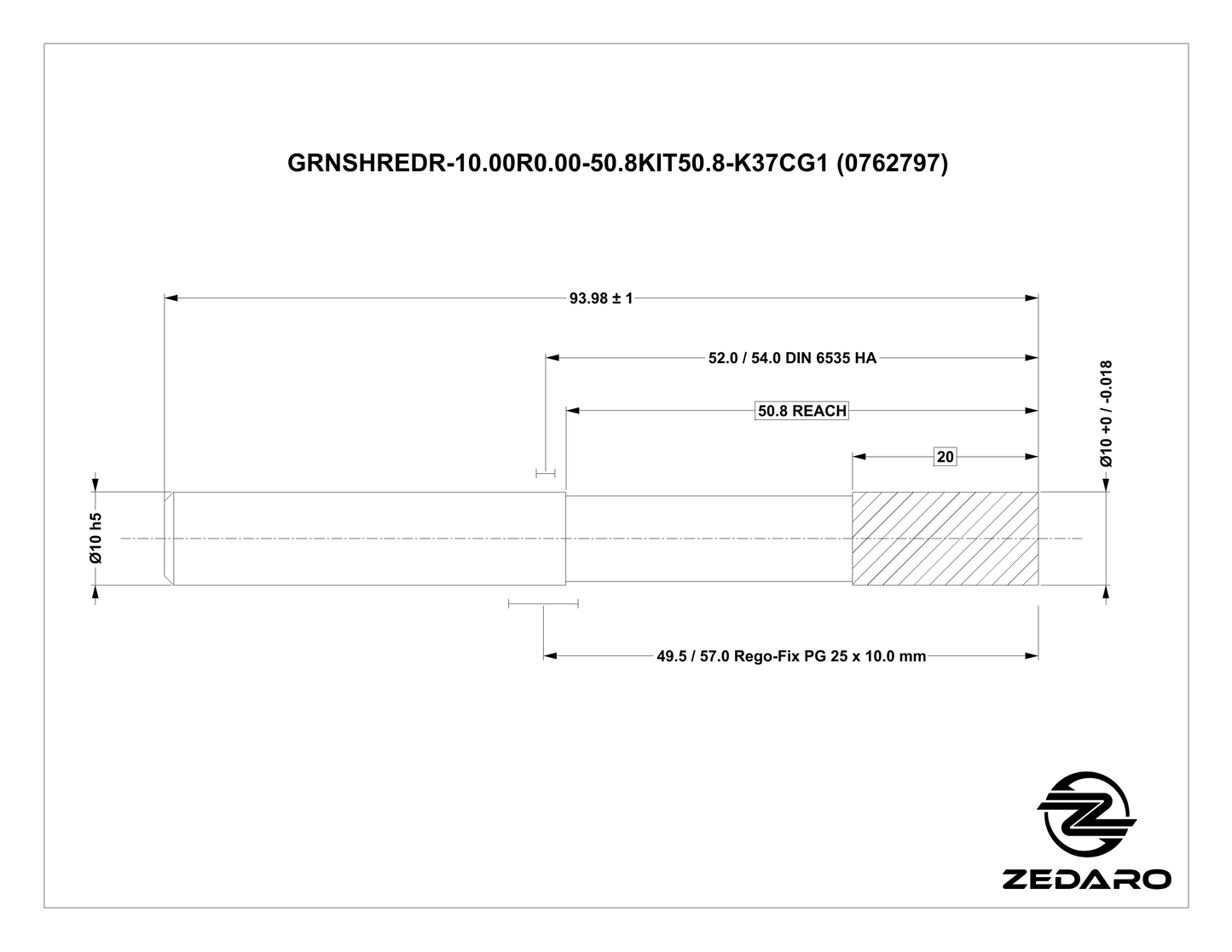

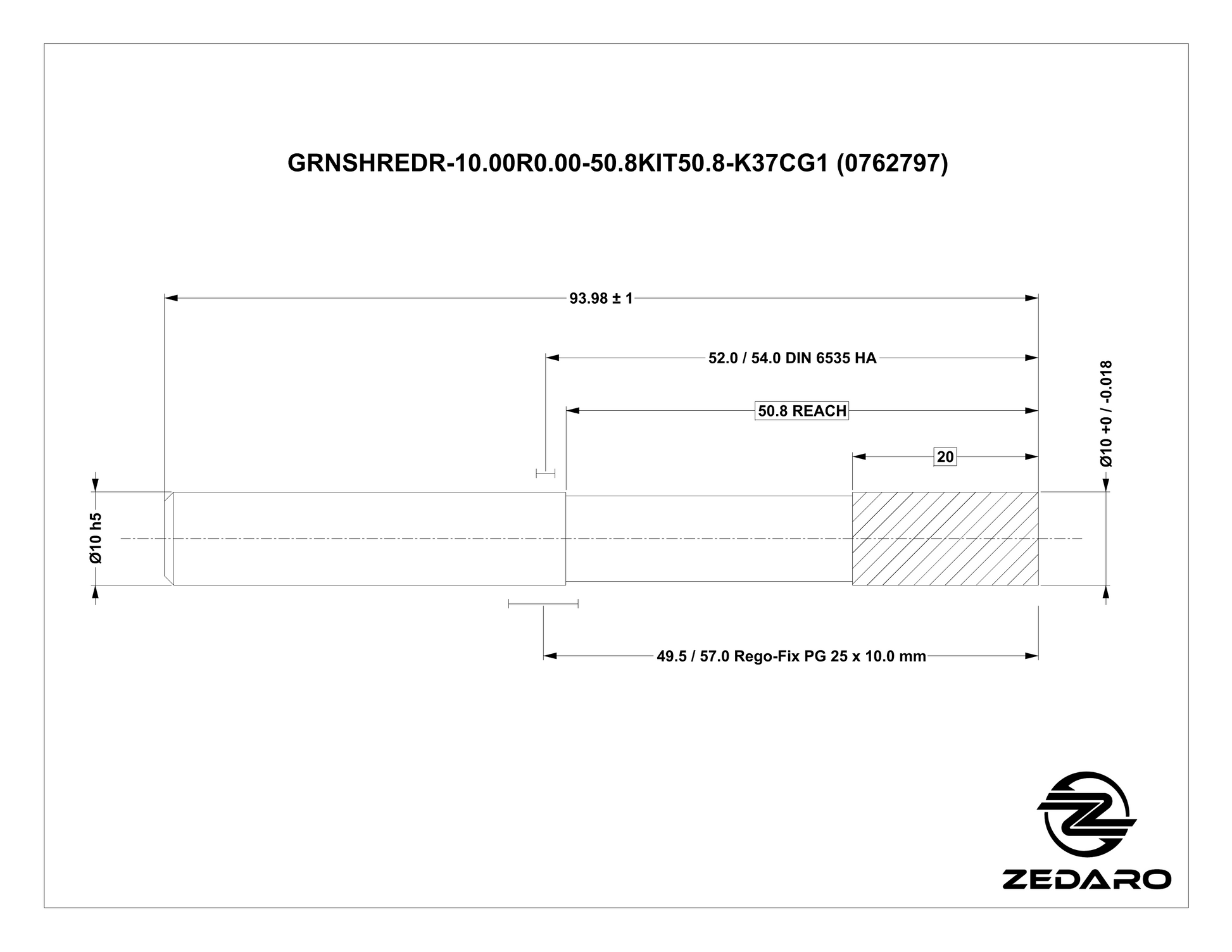

| Name | GRNSHREDR-10.00R0.00-50.8KIT50.8-K37CG1 | |
| EDP # | 0762797 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |
| Form | End Mill - Flat | |
| Cutting Diameter | 0.3937" | 10.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.7874" | 20.000 mm |
| Reach | 2.0000" | 50.800 mm |
| Minimum Extension | 2.0" | 50.8 mm |
| Maximum Extension | 3.1" | 79.0 mm |
| Shank Diameter h5 | 0.3937" | 10.000 mm |
| Overall Length | 3.7" | 94 mm |
| Cutting Edges | 3 | |
| Tolerance Class | null | |
