Zedaro PURBASHER-8.056B3.60-51.3MAS53.3-N40CE1 (0762872)
Zedaro PURBASHER-8.056B3.60-51.3MAS53.3-N40CE1 (0762872)
Couldn't load pickup availability
Zedaro UID: 0762872
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

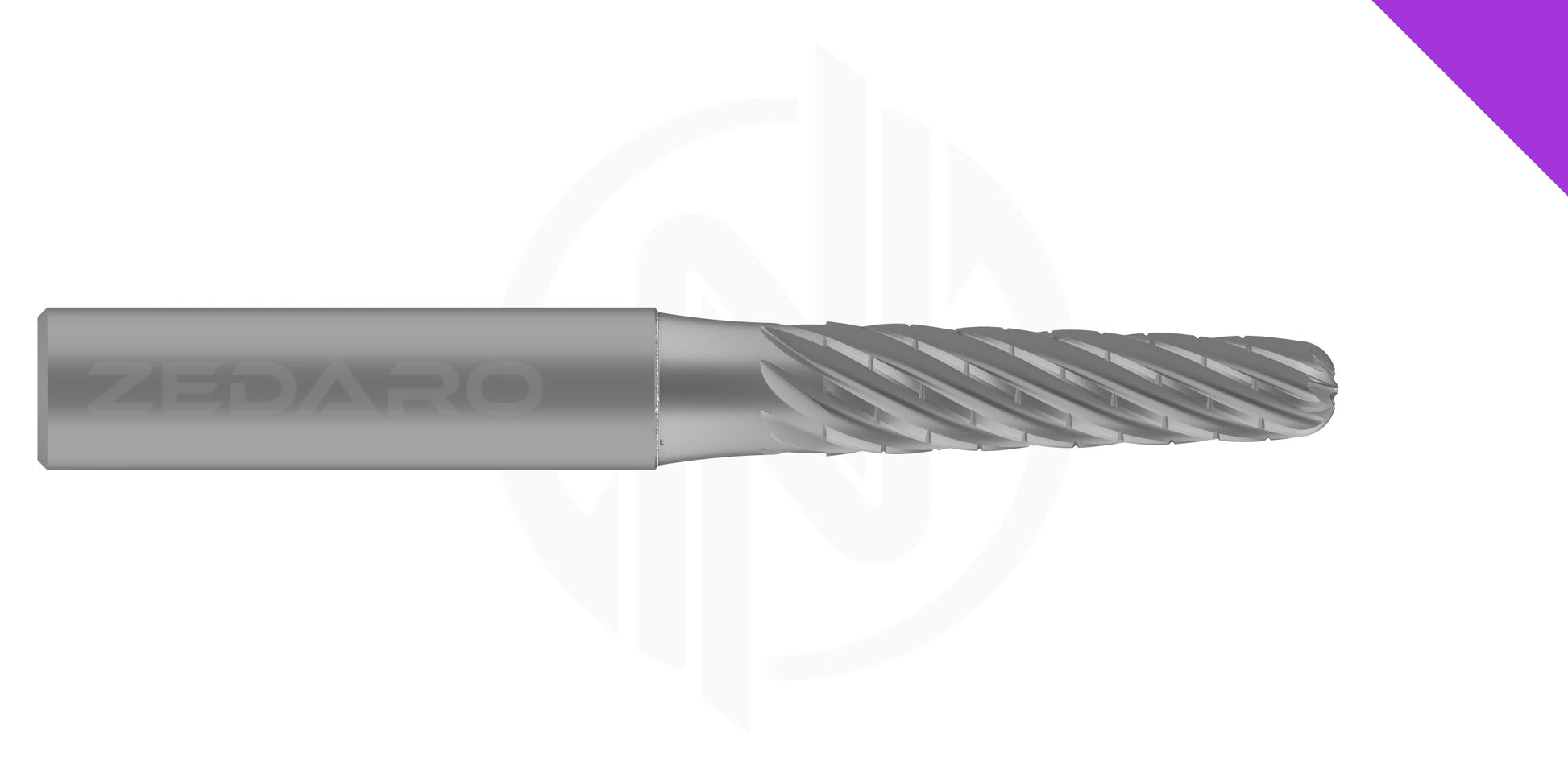

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

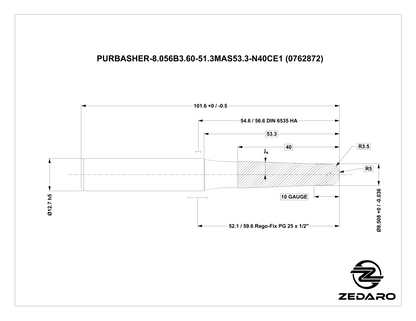

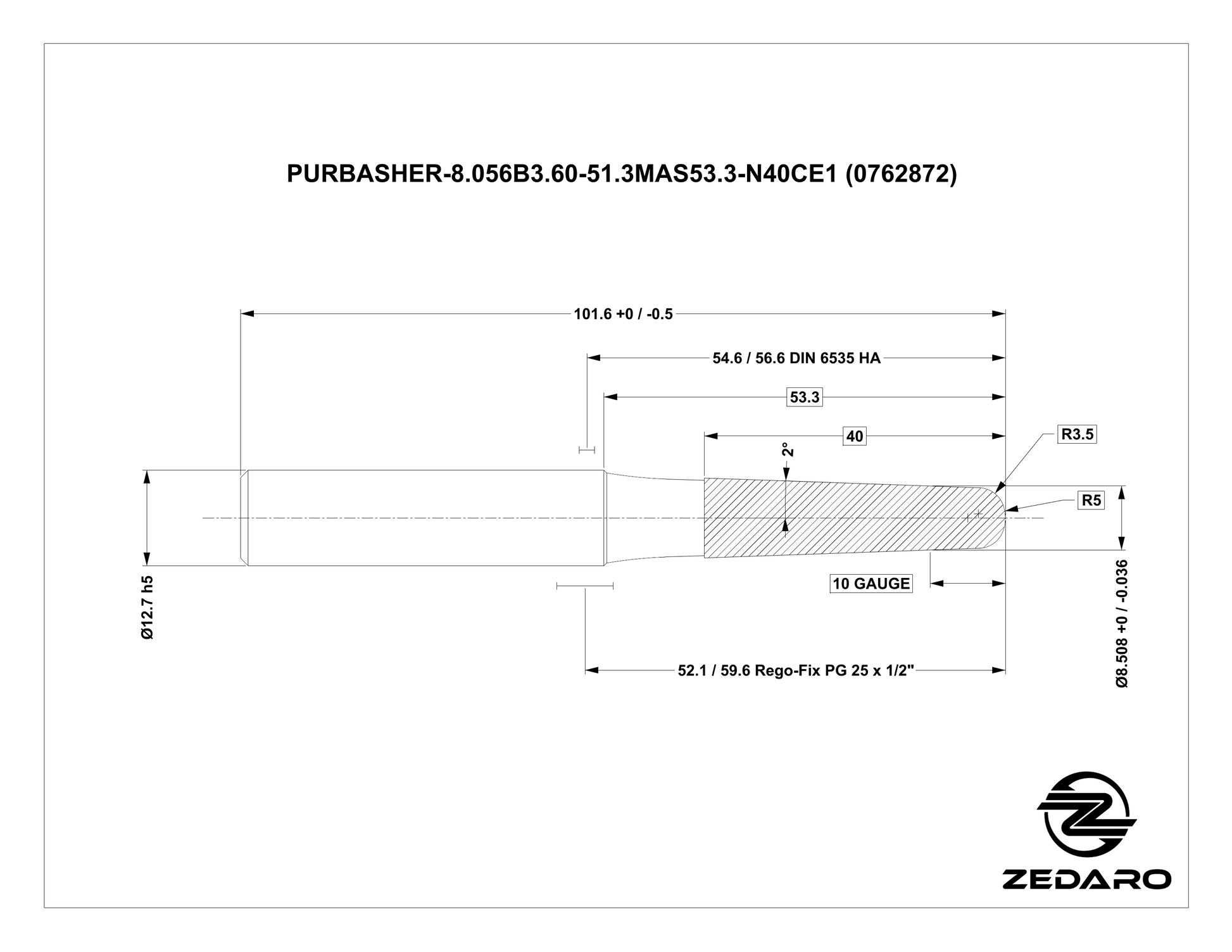

| Properties | ||
|---|---|---|
| Name | Zedaro PURBASHER-8.056B3.60-51.3MAS53.3-N40CE1 | |
| EDP # | 0762872 | |
| Workpiece Material(s) | Titanium (Purple) | |
| Weight (1 pc.) | 7.0 oz | 201 g |
| Cutting Diameter | 0.3172" | 8.056 mm |
| Equivalent Corner Rad | 0.1417" | 3.600 mm |
| Application | Rough 3D Milling w/ Chip Breakers <20k RPM (Basher) | |
| Form | Compound Radius | |
| Shank Diameter (h5) | 0.5000" | 12.700 mm |
| Cutting Edges | 8 | |
| Tolerance Class | h9 | |
| Length of Cut | 1.5748" | 40.000 mm |
| Overall Length | 4.0000" | 101.600 mm |
| Reach | 2.0197" | 51.300 mm |
| Minimum Extension | 2.0984" | 53.300 mm |
| Maximum Extension | 3.0000" | 76.200 mm |
Product Features:
- The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
- The 'Basher' line is designed for aggressive roughing and machine tools capable of spindle speeds up to 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions. The design incorporates our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates.
- 'B' form tools utilize more than one corner radius to create a tip geometry that is more suitable for feed-milling, or concave dish milling with large effective radius. The flank of the tool is straight, so one can consider this form most similar to 'R' but with two radii.
- The code 'MAS' refers to the bird species 'Masked Duck'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
