Description
The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
The 'Grazer' line is a tight-tolerance 3D finishing tool intended for machine tools with spindle speeds up to 20K rpm and which can be used for almost anything.

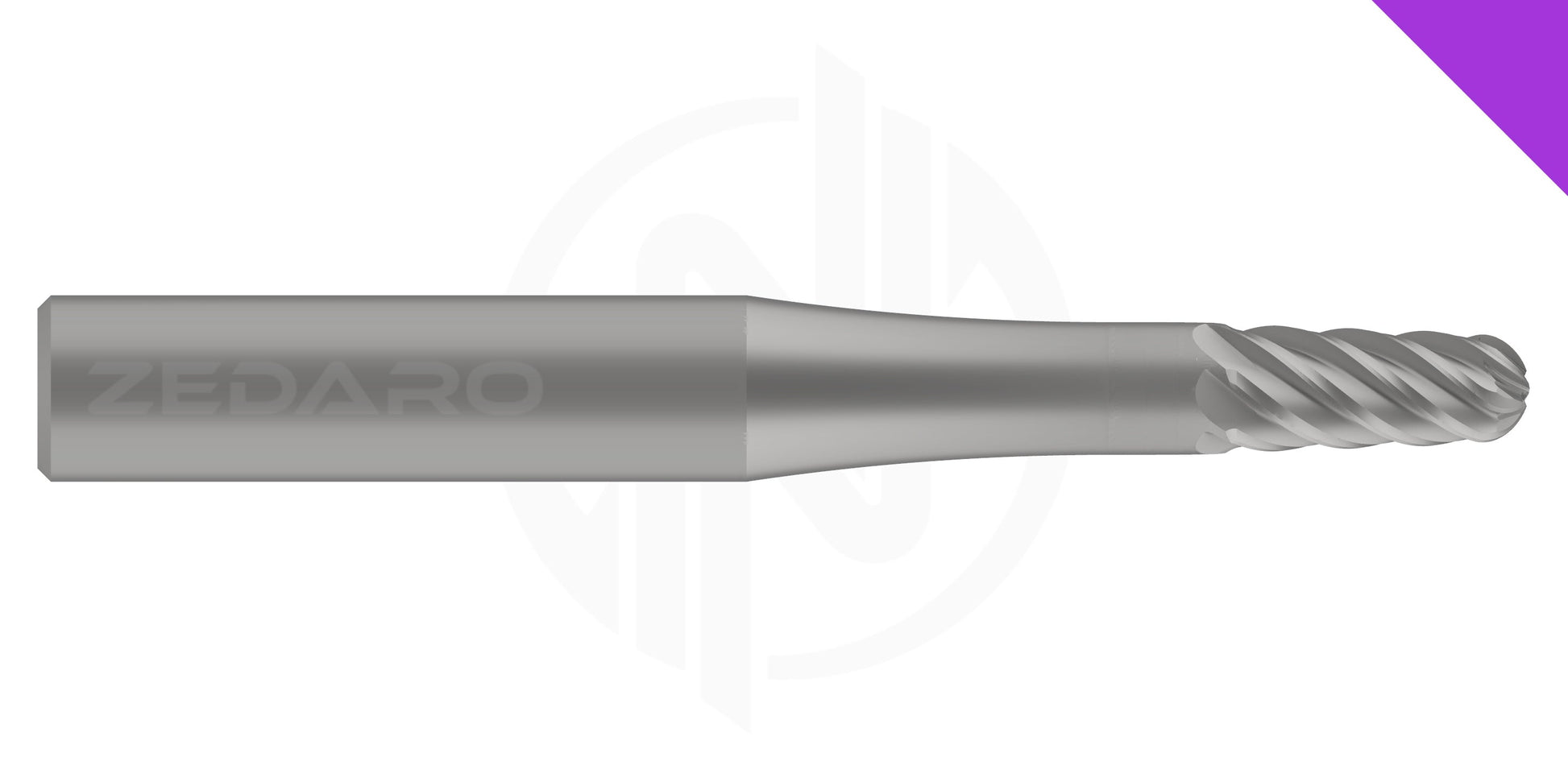

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

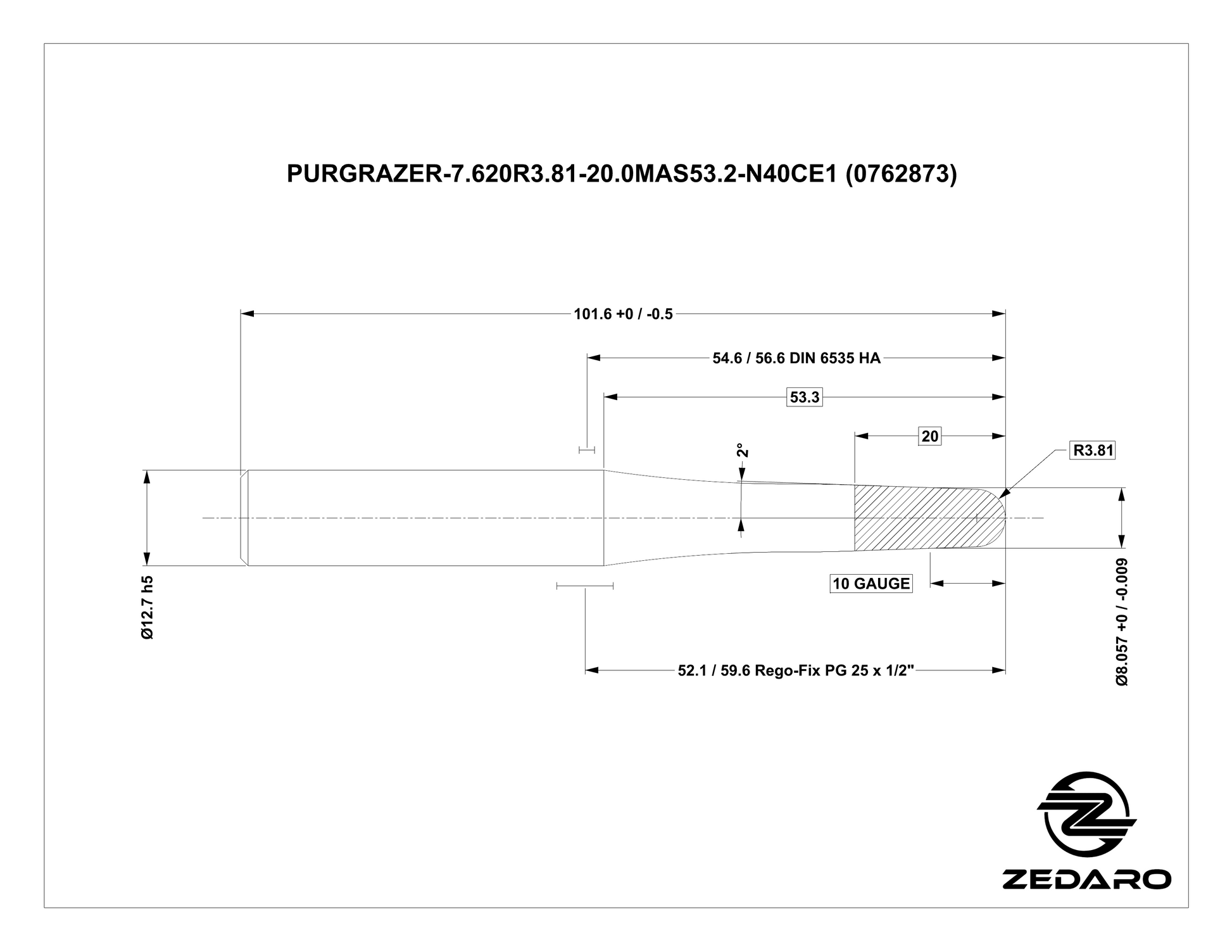

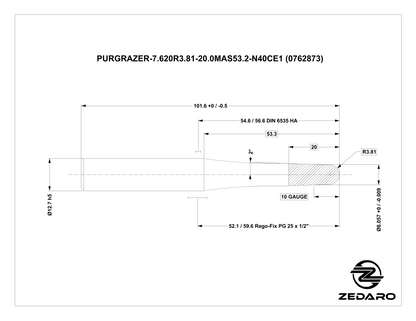

| Name | PURGRAZER-7.620R3.81-20.0MAS53.2-N40CE1 | |
| EDP # | 0762873 | |
| Material | Titanium | Application | Finish 3D Milling <20k RPM (Grazer) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.3000" | 7.620 mm |
| Corner Radius | 0.1500" | 3.810 mm |
| Taper per Side | 2.0° | |
| Length of Cut | 0.7874" | 20.000 mm |
| Reach | 0.7874" | 20.000 mm |
| Minimum Extension | 2.1" | 53.2 mm |
| Maximum Extension | 3.2" | 82.5 mm |
| Shank Diameter h5 | 0.5000" | 12.700 mm |
| Overall Length | 4.0" | 101 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h6 | |
