Zedaro YELPICKER-9.525R4.76-22.2HAW22.9-J25AB1 (0764263)
Zedaro YELPICKER-9.525R4.76-22.2HAW22.9-J25AB1 (0764263)
Couldn't load pickup availability
Zedaro UID: 0764263
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

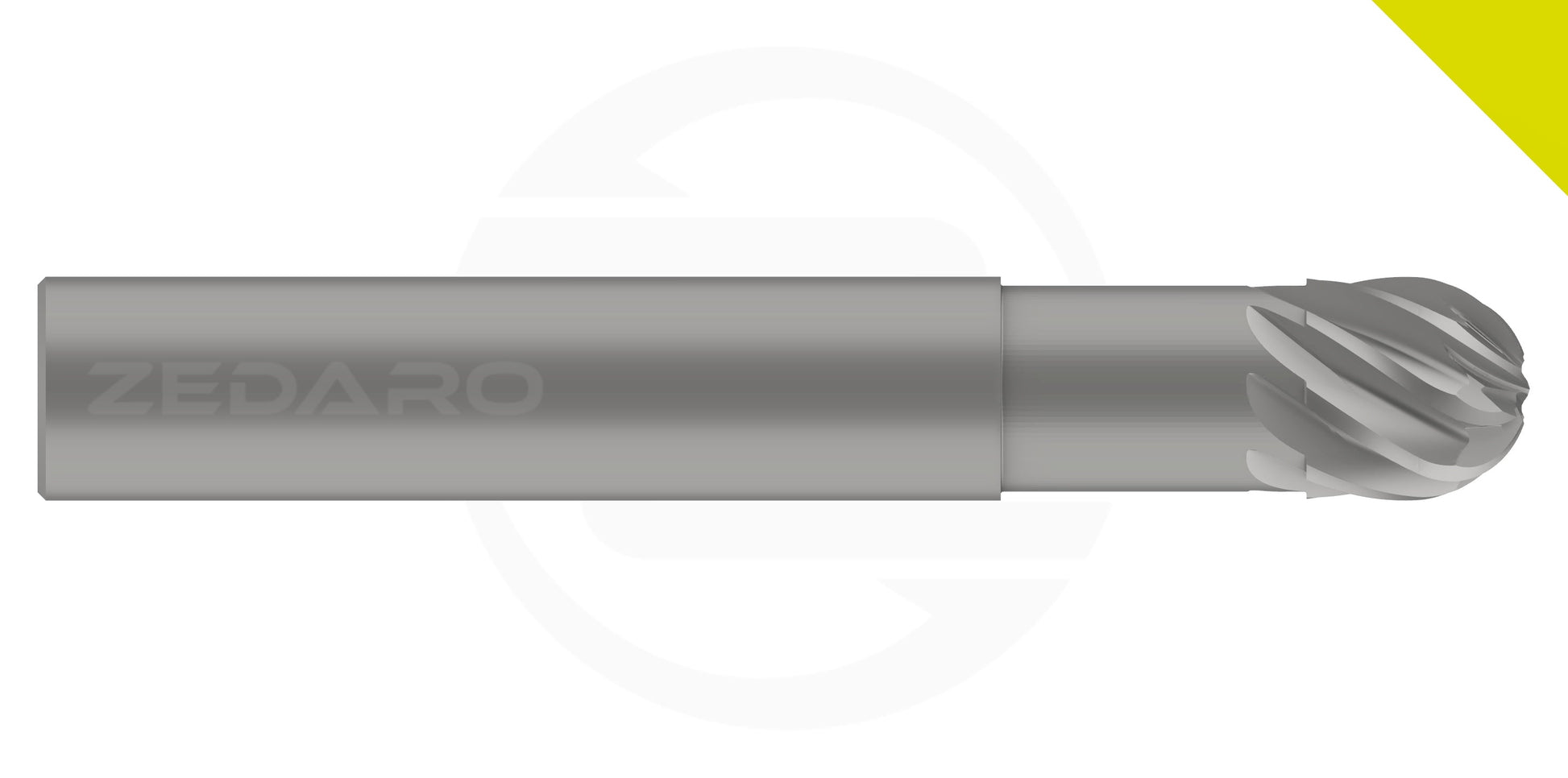

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro YELPICKER-9.525R4.76-22.2HAW22.9-J25AB1 | |
| EDP # | 0764263 | |
| Workpiece Material(s) | Stainless Steel (Yellow) | |
| Weight (1 pc.) | 2.0 oz | 70.0 g |
| Cutting Diameter | 0.3750" | 9.525 mm |
| Corner Radius | 0.1875" | 4.763 mm |
| Application | Finish 3D Point Milling <20k RPM (Picker) | |
| Form | R-BALL | |
| Shank Diameter (h6) | 0.3750" | 9.520 mm |
| Cutting Edges | 8 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.3752" | 9.530 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.8740" | 22.200 mm |
| Minimum Extension | 0.9016" | 22.900 mm |
| Maximum Extension | 1.7520" | 44.500 mm |
Product Features:
- The 'Yellow' line of tooling is designed specifically for cutting stainless steel alloys.
- The 'Picker' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds over 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'HAW' refers to the bird species 'Hawk'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
