Zedaro PURPICKER-7.620V7.62-7.62MAS38.1-J40CE1 (0764393)
Zedaro PURPICKER-7.620V7.62-7.62MAS38.1-J40CE1 (0764393)
Couldn't load pickup availability
Zedaro UID: 0764393
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

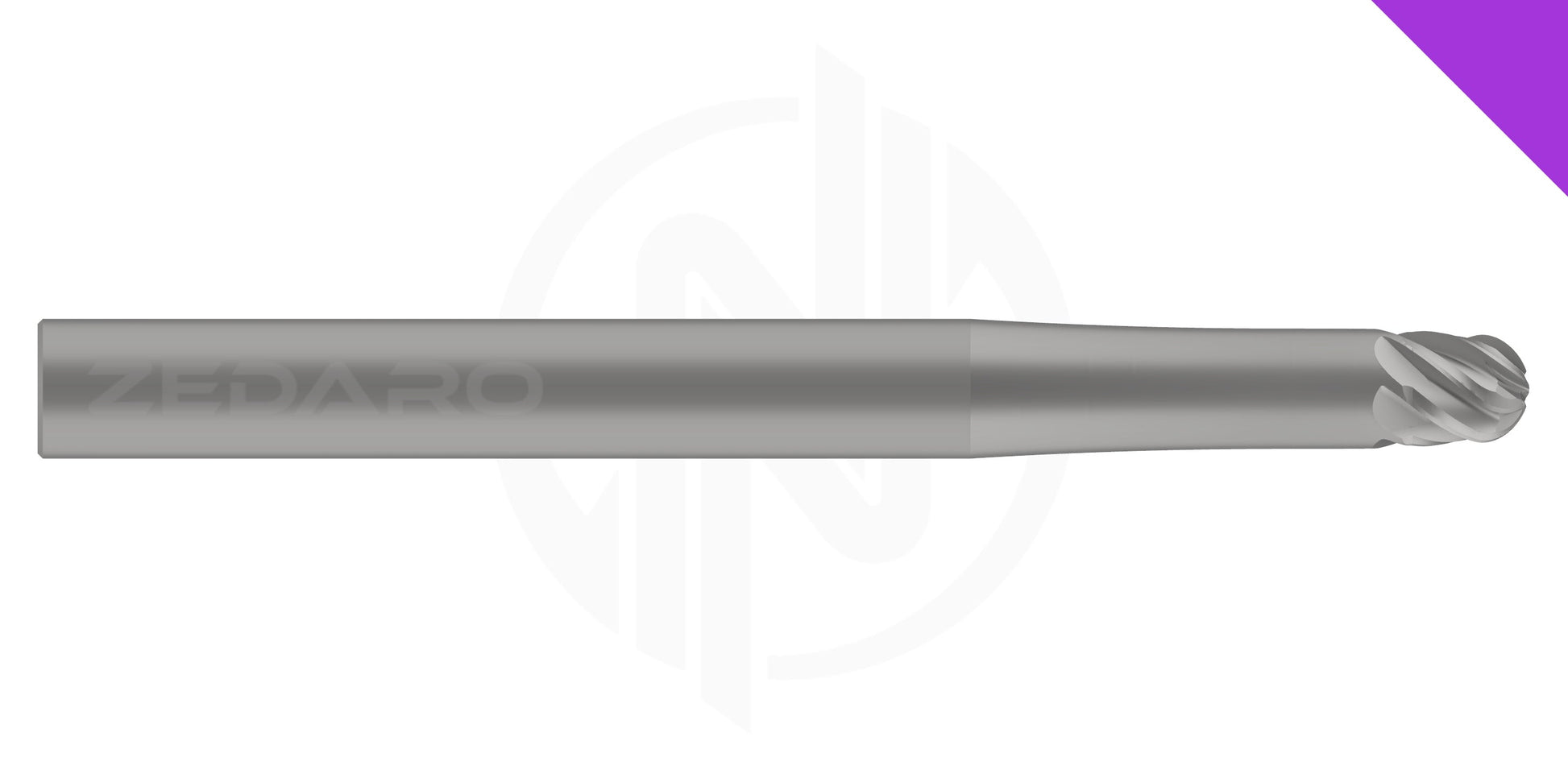

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro PURPICKER-7.620V7.62-7.62MAS38.1-J40CE1 | |
| EDP # | 0764393 | |
| Workpiece Material(s) | Titanium (Purple) | |
| Weight (1 pc.) | 4.0 oz | 113 g |
| Cutting Diameter | 0.3000" | 7.620 mm |
| Cutting Length | 0.3000" | 7.620 mm |
| Application | Finish 3D Point Milling <20k RPM (Picker) | |
| Form | Tapered Ball | |
| Shank Diameter (h5) | 0.3750" | 9.520 mm |
| Cutting Edges | 6 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.3110" | 7.900 mm |
| Overall Length | 4.0000" | 101.600 mm |
| Reach | 0.3000" | 7.620 mm |
| Minimum Extension | 1.5000" | 38.100 mm |
| Maximum Extension | 3.2480" | 82.500 mm |
Product Features:
- The 'Purple' line of tooling is designed specifically for cutting wrought titanium alloys.
- The 'Picker' line is a tight-tolerance 3D point/ball finishing tool which uses only the tip of the tool for cutting. This line is intended for machine tools with spindles capable of speeds over 20K rpm.
- 'V' form tools are excellent for milling in confined areas and have optimal strength and stiffness properties for deep slotting and flanking. Typically combined with 5-axis simultaneous tool paths in the aerospace industry and for other complex forms, they are also commonly used on 3-axis machines for generating drafted walls; especially in the mold making industry.
- The code 'MAS' refers to the bird species 'Masked Duck'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
