Zedaro GRNEDGERR-6.350C60.0-999.AUF12.7-G20CG1 (0764460)
Zedaro GRNEDGERR-6.350C60.0-999.AUF12.7-G20CG1 (0764460)
Quantity
Couldn't load pickup availability
Sign in to see pricing.
Technical Files

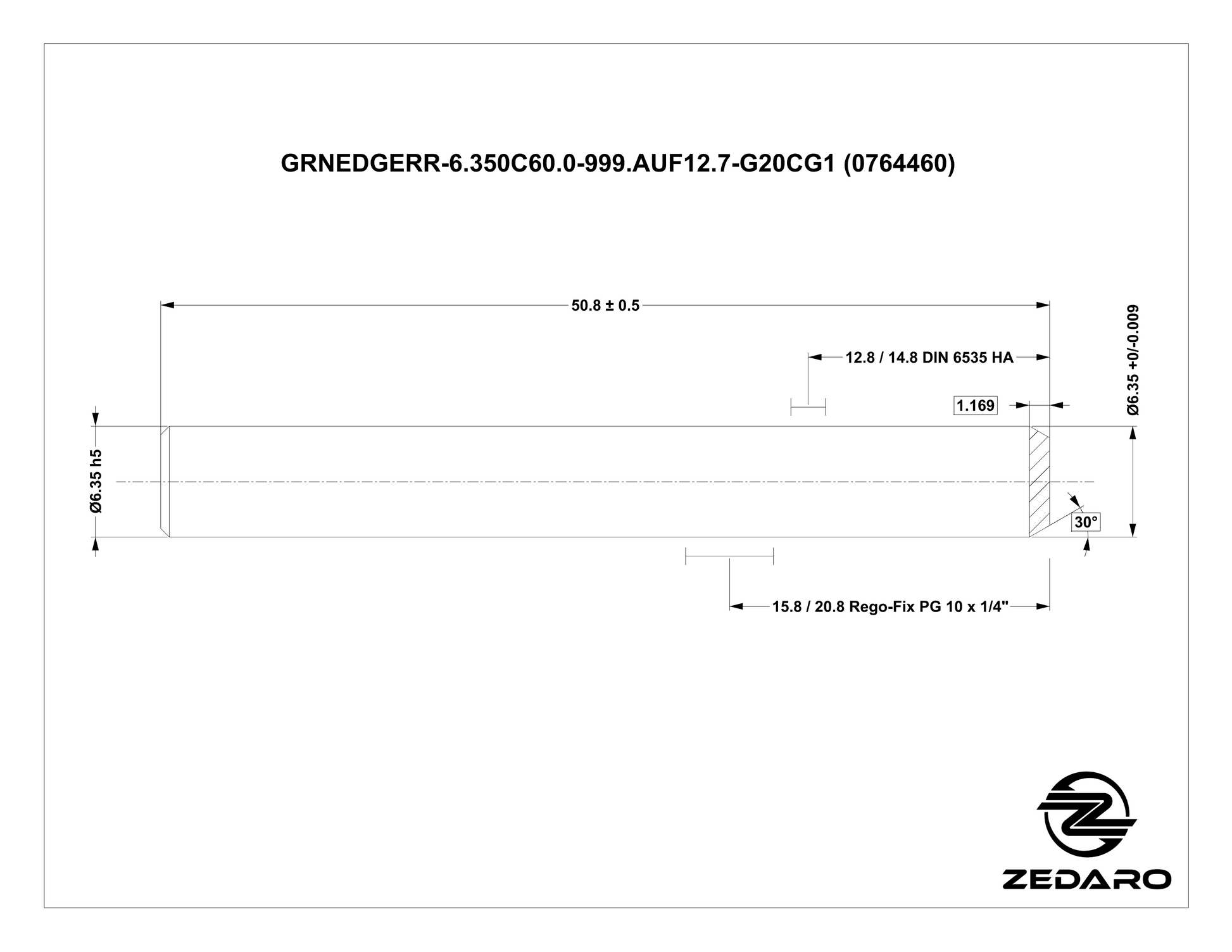

Drawings, DXF profiles and CAD models are available to approved
account holders.
Sign in or
request approval.
Shipping calculated at checkout.
Zedaro UID: 0764460
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

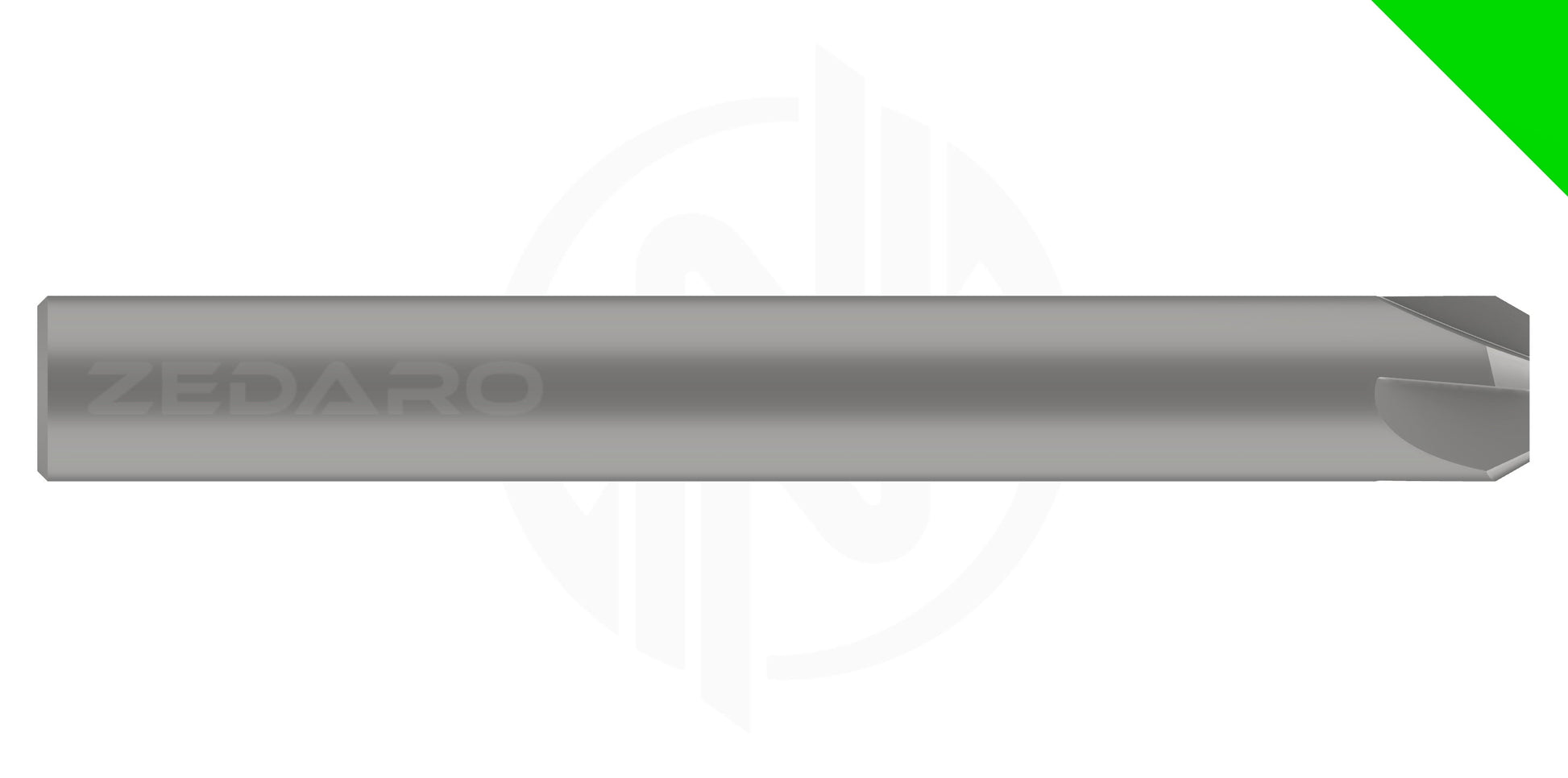

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNEDGERR-6.350C60.0-999.AUF12.7-G20CG1 | |
| EDP # | 0764460 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 25.0 g |
| Cutting Diameter | 0.2500" | 6.350 mm |
| Total Tip Angle | 2.3622" | 60.000 mm |
| Application | Finish Chamfer/Deburr (Edger) | |
| Form | Chamfer | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.0461" | 1.170 mm |
| Overall Length | 2.0000" | 50.800 mm |
| Reach | (No flank reach limit) | |
| Minimum Extension | 0.5000" | 12.700 mm |
| Maximum Extension | 1.5000" | 38.100 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Edger' line is for chamfering and deburring.
- 'C' form tools are for chamfering and deburring, available in a large array of tip angles.
- The code 'AUF' refers to the bird species 'Atlantic Puffin'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
