Zedaro GRNCHIRPR-10.00R0.00-50.8KIT50.8-K37CG1 (0764652)
Zedaro GRNCHIRPR-10.00R0.00-50.8KIT50.8-K37CG1 (0764652)
Couldn't load pickup availability
Zedaro UID: 0764652
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

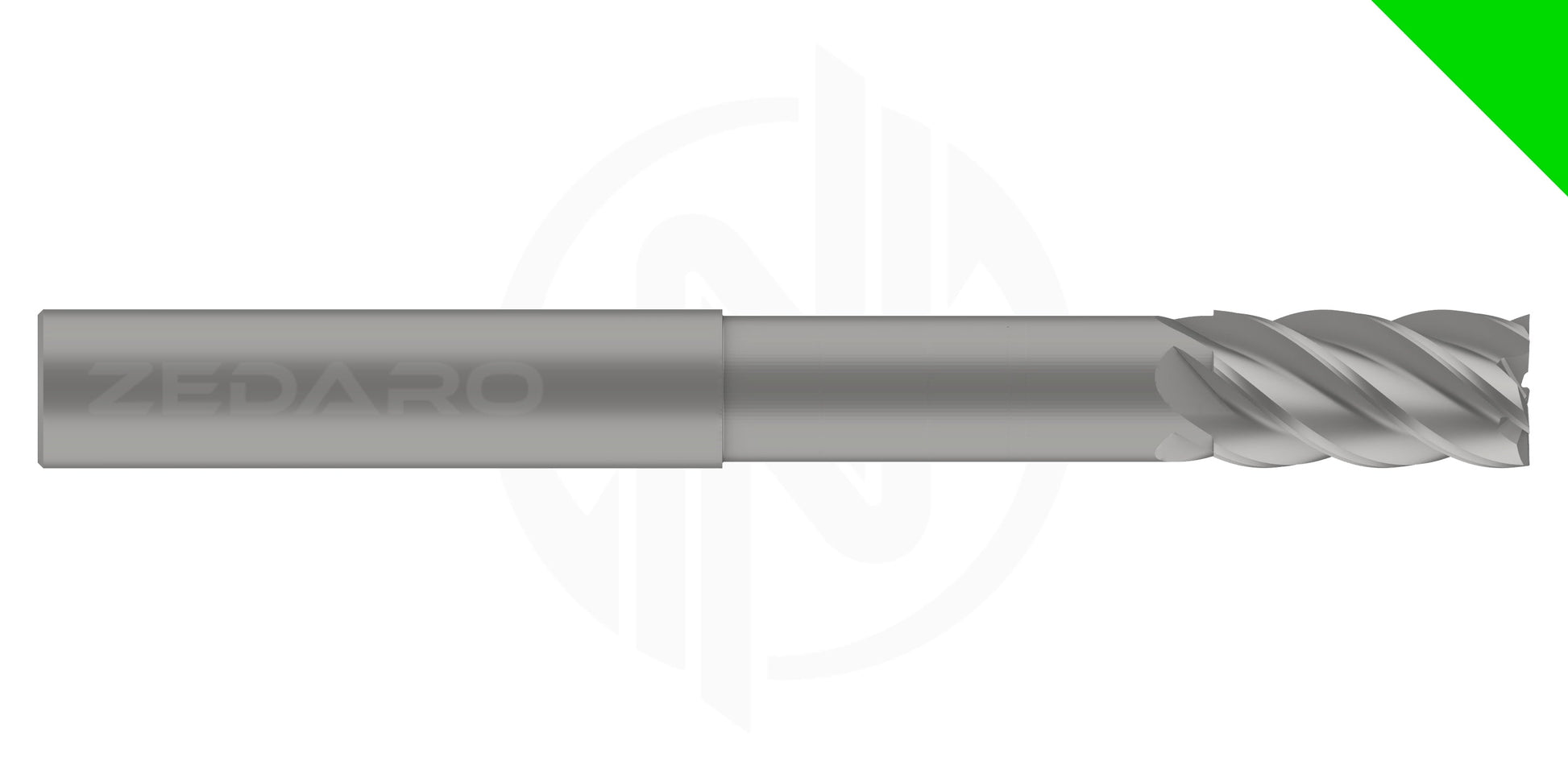

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

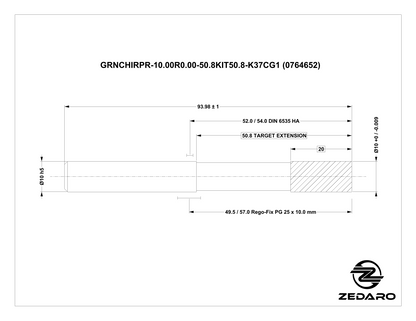

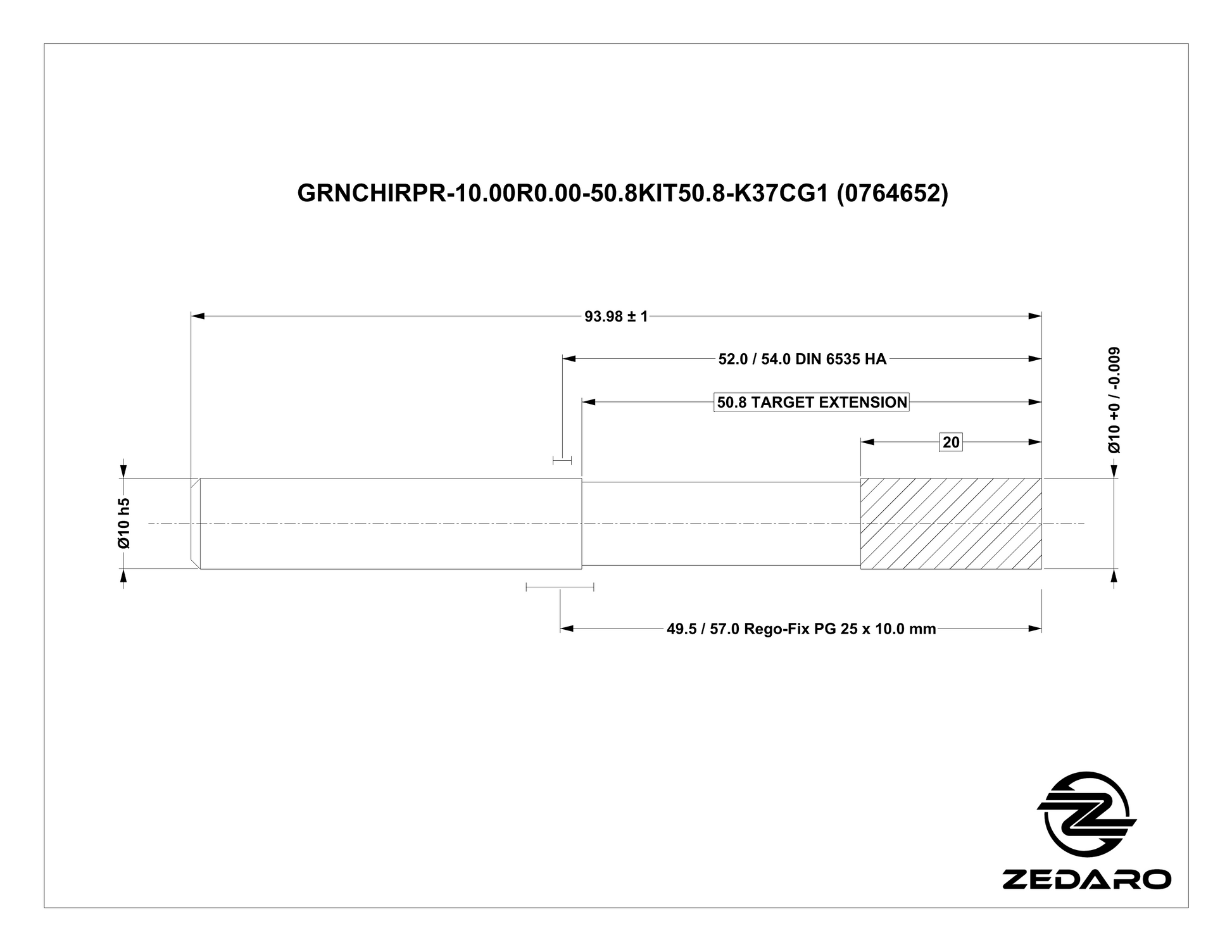

| Properties | ||
|---|---|---|
| Name | Zedaro GRNCHIRPR-10.00R0.00-50.8KIT50.8-K37CG1 | |
| EDP # | 0764652 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 4.0 oz | 115 g |
| Cutting Diameter | 0.3937" | 10.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | R-FLAT | |
| Shank Diameter (h5) | 0.3937" | 10.000 mm |
| Cutting Edges | 5 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.7874" | 20.000 mm |
| Overall Length | 3.7000" | 93.980 mm |
| Reach | 2.0000" | 50.800 mm |
| Minimum Extension | 2.0000" | 50.800 mm |
| Maximum Extension | 2.9134" | 74.000 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'KIT' refers to the bird species 'Kite'.
Company History:
Zedaro has been producing cutting edge technology for over a decade.
