Description
Ceratizit Article Number: 7100780202
Ceratizit Material Number: 14823391
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

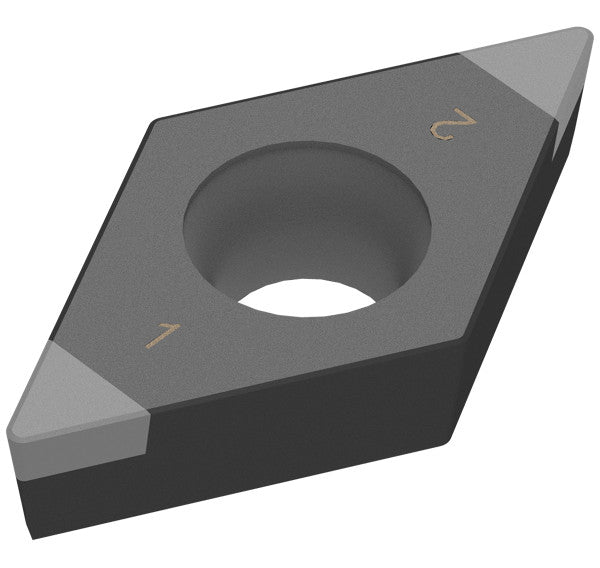

| Name | Ceratizit DCGW 070202SN-014D_B4-R CTBH2000C HardCut 7100780202 | |
| EDP # | 0765070 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| designation | 070202SN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3051" | 7.750 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0937" | 2.380 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1457" | 3.700 mm |
| Face land width / BN | 0.0055" | 0.140 mm |
| Insert index count / NOI | 2 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH2000C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
