Description
Ceratizit Article Number: 7103481002
Ceratizit Material Number: 14823414
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

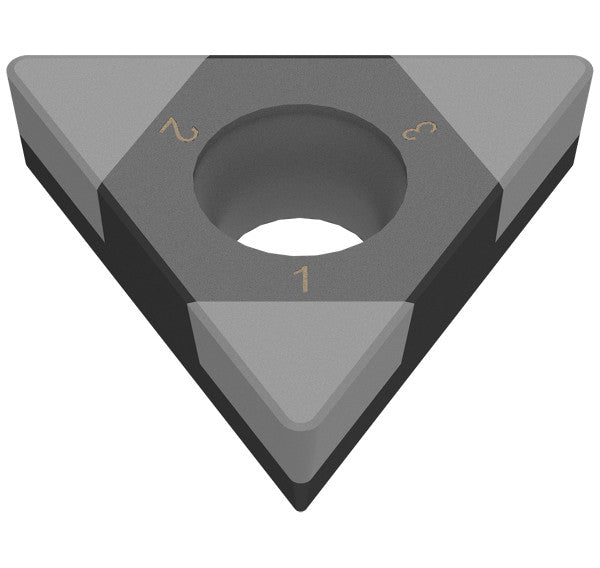

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TCGW 16T308SN-009C_C3-M CTBH2000C HardCut 7103481002 | |
| EDP # | 0765092 | |
| Weight (1 pc.) | 0.2 oz | 6.3 g |
| designation | 16T308SN | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6496" | 16.500 mm |
| Insert thickness / S | 0.1563" | 3.970 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | C (3) | |
| Cutting edge effective length / LE | 0.1299" | 3.300 mm |
| Face land width / BN | 0.0035" | 0.090 mm |
| Insert index count / NOI | 3 | |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTBH2000C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
