Description
Ceratizit Article Number: 6235903289
Ceratizit Material Number: 14582485
Ceratizit Komet Number (Unpacked): A69 20320
Ceratizit Komet Number (Packed): A6920320
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

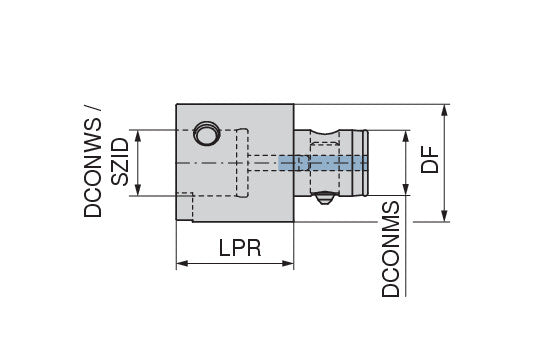

| Properties | ||
|---|---|---|

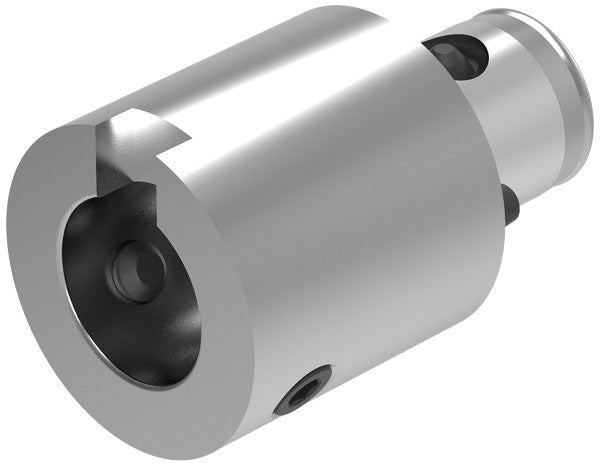

| Name | Ceratizit MK.AD.ABS32-STM18.40 KOMET MicroKom STM/ABS Adapters 6235903289 | |
| EDP # | 0765433 | |
| Weight (1 pc.) | 9.0 oz | 252 g |
| Machine interface size | ABS 32 | |
| nominal size / SZID | STM 18 | |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 0.6299" | 16.000 mm |
| Overall length / OAL | 2.4803" | 63.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7087" | 18.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
