Description
Ceratizit Article Number: 6235904088
Ceratizit Material Number: 14582487
Ceratizit Komet Number (Unpacked): A69 20400
Ceratizit Komet Number (Packed): A6920400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

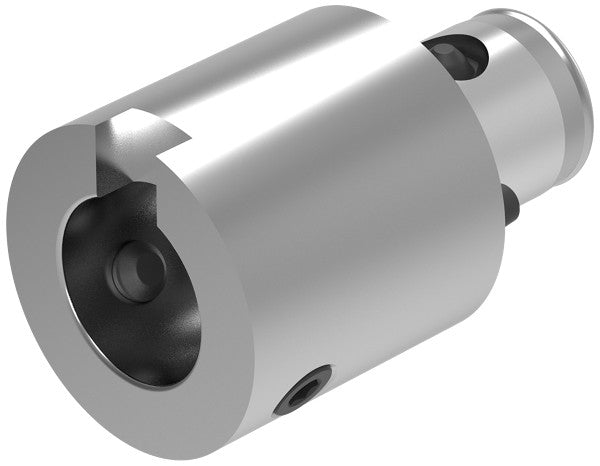

| Name | Ceratizit MK.AD.ABS40-STM22.40 KOMET MicroKom STM/ABS Adapters 6235904088 | |
| EDP # | 0765434 | |
| Weight (1 pc.) | 14.0 oz | 388 g |
| Machine interface size | ABS 40 | |
| nominal size / SZID | STM 22 | |
| Protruding length / LPR | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 2.5984" | 66.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.8661" | 22.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
