Description
Ceratizit Article Number: 4040303050
Ceratizit Material Number: 14602229
Ceratizit Komet Number (Unpacked): 52S.440030C0006
Ceratizit Komet Number (Packed): 52S440030C0006
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D003.0500M +0.0040/+0.0000 ASG2231 Reamax - High-performance Machine reamers, Long - Full VA 4040303050 | |
| EDP # | 0765521 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

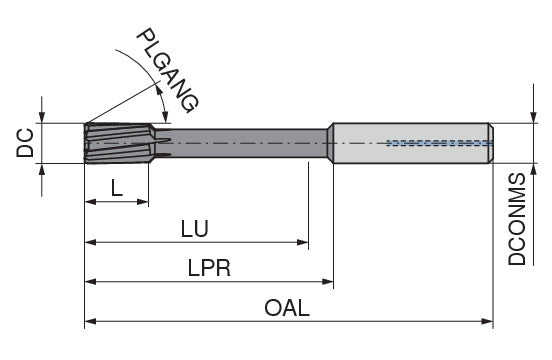

| Cutting diameter / DC +0,004/+0,005 mm | 0.1201" | 3.050 mm |
| Overall length / OAL | 2.3622" | 60.000 mm |
| Cutting edge length / L | 0.4724" | 12.000 mm |
| Usable length / LU | 1.1024" | 28.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.1575" | 4.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Protruding length / LPR | 1.2598" | 32.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBQ | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
