Description
Ceratizit Article Number: 4081240010
Ceratizit Material Number: 14617833
Ceratizit Komet Number (Unpacked): 340.920410C0064
Ceratizit Komet Number (Packed): 340920410C0064
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

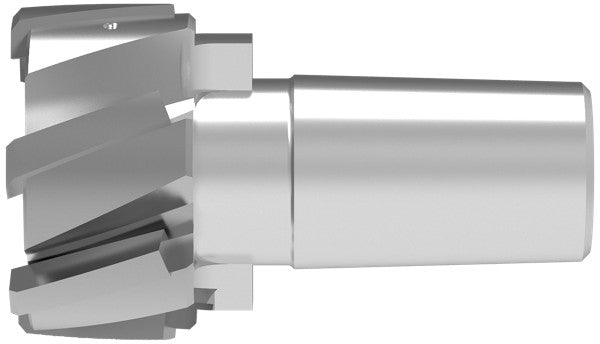

| Name | Ceratizit D040.0100M H7 ASG05 CoreLine - Rapid Set Head 4081240010 | |
| EDP # | 0765579 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

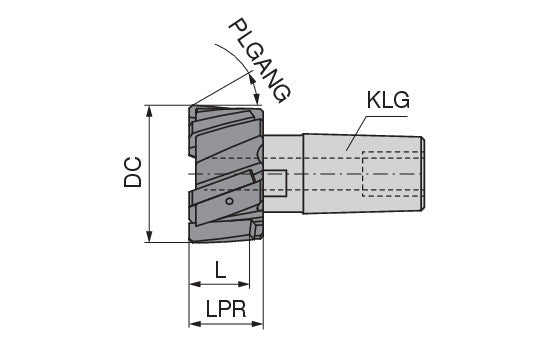

| Cutting diameter / DC H7 | 1.5752" | 40.010 mm |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Protruding length / LPR | 0.6693" | 17.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Premachined hole diameter / PHD | dc-8.0 | |
| Coating name / Grade (Ceratizit) / COATN | DST | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
