Description
Ceratizit Article Number: 4081700009
Ceratizit Material Number: 14618616
Ceratizit Komet Number (Unpacked): 300.251010C0050
Ceratizit Komet Number (Packed): 300251010C0050
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

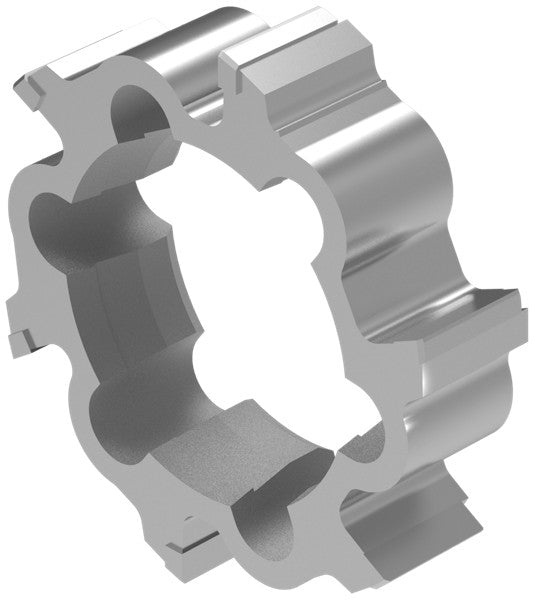

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D100.6000M H7 ASG3000 CoreLine - Cutting Ring 4081700009 | |
| EDP # | 0765599 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H7 | 3.9606" | 100.600 mm |
| Peripheral effective cutting edge count / ZEFP | 10.0000" | 254.000 mm |
| Premachined hole diameter / PHD | dc-8.4 | |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
