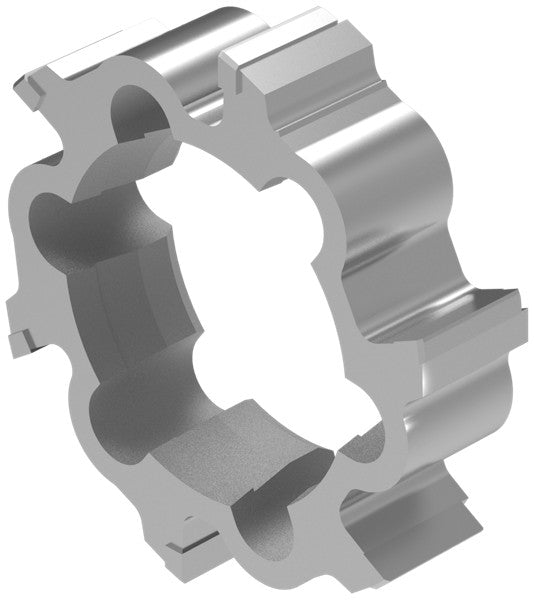

Ceratizit D085.6000M H7 ASG02 CoreLine - Cutting Ring 4081800006 (0765606)
Ceratizit D085.6000M H7 ASG02 CoreLine - Cutting Ring 4081800006 (0765606)
Couldn't load pickup availability
Ceratizit Article Number: 4081800006
Ceratizit Material Number: 14618657
Ceratizit Komet Number (Unpacked): 300.250860C0055
Ceratizit Komet Number (Packed): 300250860C0055
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

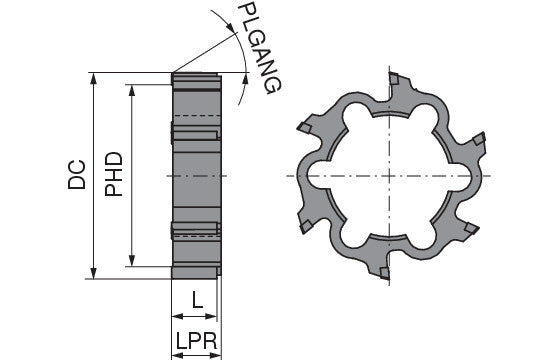

| Properties | ||
|---|---|---|
| Name | Ceratizit D085.6000M H7 ASG02 CoreLine - Cutting Ring 4081800006 | |
| EDP # | 0765606 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H7 | 3.3701" | 85.600 mm |
| Peripheral effective cutting edge count / ZEFP | 8.0000" | 203.200 mm |
| Premachined hole diameter / PHD | dc-8.4 | |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
