Description
Ceratizit Article Number: 4082100003
Ceratizit Material Number: 14618780
Ceratizit Komet Number (Unpacked): 300.050710C0054
Ceratizit Komet Number (Packed): 300050710C0054
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

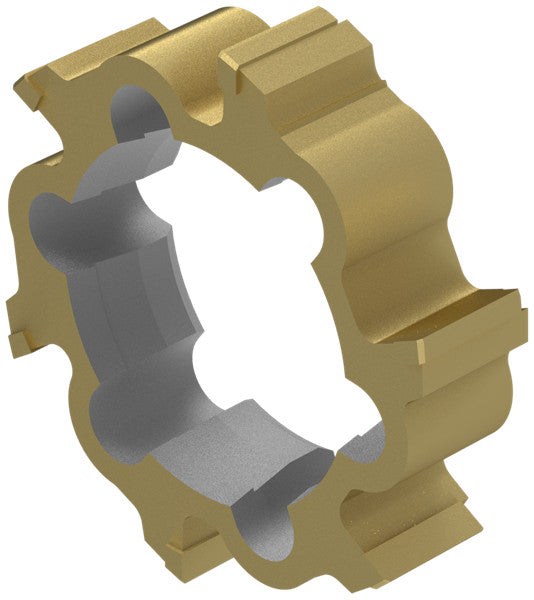

| Name | Ceratizit D070.6000M H7 ASG3000 CoreLine - Cutting Ring 4082100003 | |
| EDP # | 0765611 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

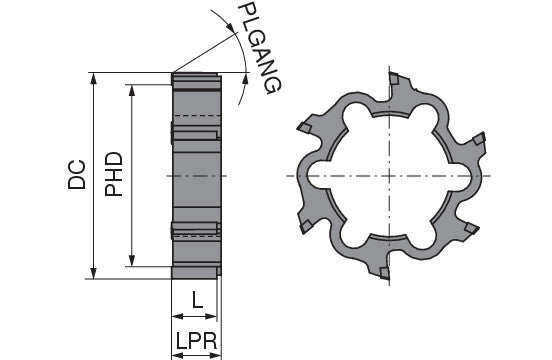

| Cutting diameter / DC H7 | 2.7795" | 70.600 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Premachined hole diameter / PHD | dc-8.4 | |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
