Description
Ceratizit Article Number: 4081324010
Ceratizit Material Number: 14619402
Ceratizit Komet Number (Unpacked): 340.930250C0118
Ceratizit Komet Number (Packed): 340930250C0118
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

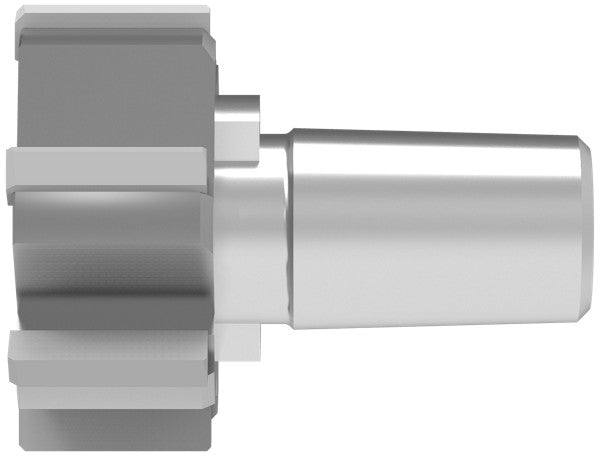

| Name | Ceratizit D024.0100M H7 ASG3000 CoreLine - Rapid Set Head 4081324010 | |
| EDP # | 0765660 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting diameter / DC H7 | 0.9453" | 24.010 mm |
| Cutting edge length / L | 0.4134" | 10.500 mm |
| Protruding length / LPR | 0.4331" | 11.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Premachined hole diameter / PHD | dc-6.0 | |
| Coating name / Grade (Ceratizit) / COATN | DST | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
