Ceratizit SE.N.08,40X15,00.180°.DF.DIN373 CoreLine - Counterbore, - 30190080 (0766175)
Ceratizit SE.N.08,40X15,00.180°.DF.DIN373 CoreLine - Counterbore, - 30190080 (0766175)
Couldn't load pickup availability
Ceratizit Article Number: 30190080
Ceratizit Material Number: 3019008000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SE.N.08,40X15,00.180°.DF.DIN373 CoreLine - Counterbore, - 30190080 | |
| EDP # | 0766175 | |
| Weight (1 pc.) | 3.0 oz | 89.4 g |
| Thread | M8 | |

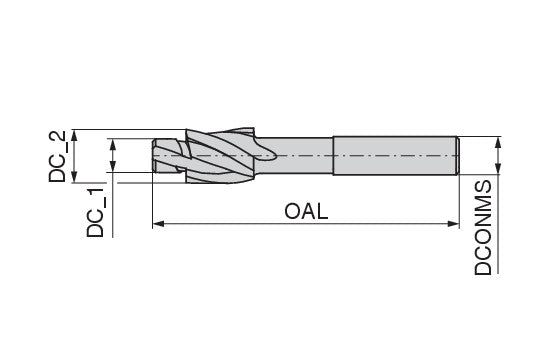

| Cutting diameter, 2nd cutting step / DC_2 z9 | 0.5906" | 15.000 mm |
| Mounting spigot diameter / DCONMS h9 | 0.4921" | 12.500 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Cutting diameter, 1st cutting step / DC_1 e8 | 0.3307" | 8.400 mm |
| Version | Fine | |
| Cutting diameter, 1st cutting step - tolerance | e8 | |
| Minimum Extension (DIN 6535 HA) | 2.0866" - 2.1654" | 53.000 - 55.000 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
