Description
Ceratizit Article Number: 4021115890
Ceratizit Material Number: 4021115890
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

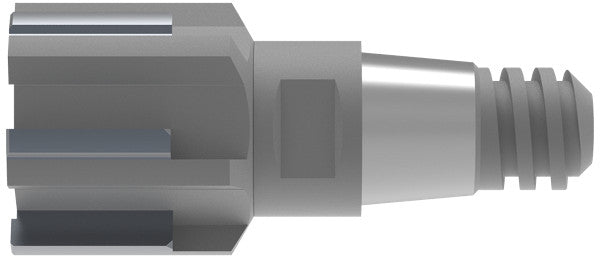

| Name | Ceratizit MUC.15,89.H7.SL.60°.KLG8.SW8 CWC10 KOMET MultiChange - Reaming Head, For Blind Holes 4021115890 | |
| EDP # | 0767474 | |
| Weight (1 pc.) | 0.004 oz | 0.1 g |

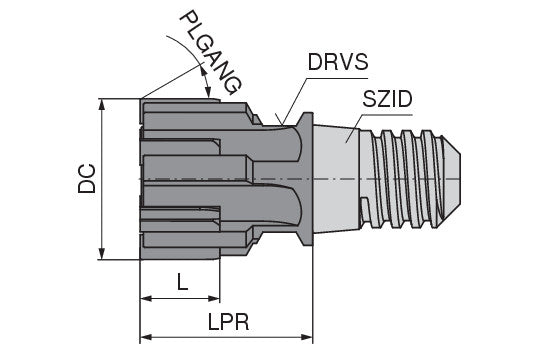

| Cutting diameter / DC H7 | 62.5591" | 1589.000 mm |
| nominal size / SZID | 08 | |
| Cutting edge length / L | 0.3150" | 8.000 mm |
| Protruding length / LPR | 0.8661" | 22.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Drive size / DRVS | 0.3150" | 8.000 mm |
| Torque maximum / TQX | 12,5 Nm | |
| Coating name / Grade (Ceratizit) / COATN | CWC10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
