Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222 (0769204)
Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222 (0769204)0769204
Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222 (0769204)0769204
—
—/ea
 —
—
—/ea
 —
1 2

Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222 (0769204)

Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222 (0769204)

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 50234222

Ceratizit Material Number: 5023422200

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

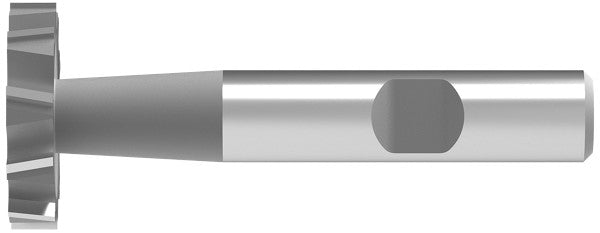

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit N.SL.22,5.6,0.Z8.HB CoreLine - Slot Milling Cutter HSS-E Co 5, Cross-pitched - 50234222
EDP # 0769204
Weight (1 pc.) 2.0 oz 50.9 g
Machining process - Main Application Slot milling

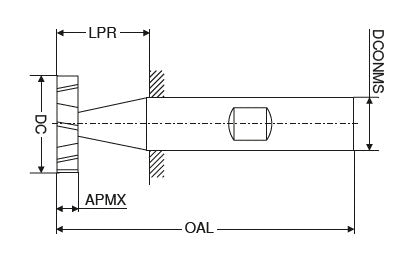

Cutting diameter / DC h12 0.8858" 22.500 mm
Depth of cut maximum / APMX e8 0.2362" 6.000 mm
Neck Diameter / DN 0.2559" 6.500 mm
Protruding length / LPR 0.9055" 23.000 mm
Overall length / OAL 2.4803" 63.000 mm
Mounting spigot diameter / DCONMS h6 0.3937" 10.000 mm
Cutting depth maximum / CDX 0.3150" 8.000 mm
Peripheral effective cutting edge count / ZEFP 8.0000" 203.200 mm
Coating name / Grade (Ceratizit) / COATN uncoated


Tool Form:

'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
