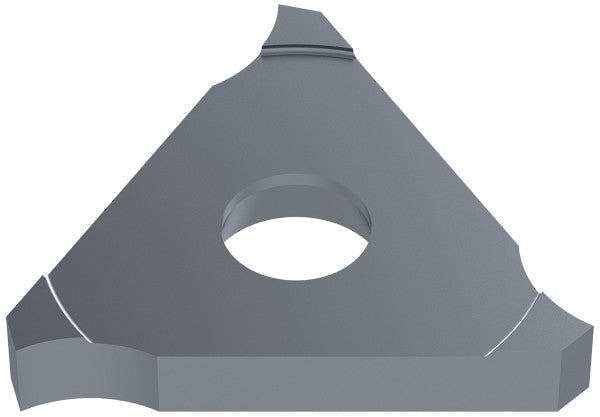

Ceratizit TXR 161702 CWX500 CoreLine - Carbide Milling indexable Insert - TX-R 50381217 (0769415)
Ceratizit TXR 161702 CWX500 CoreLine - Carbide Milling indexable Insert - TX-R 50381217 (0769415)
Couldn't load pickup availability
Ceratizit Article Number: 50381217
Ceratizit Material Number: 5038121700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TXR 161702 CWX500 CoreLine - Carbide Milling indexable Insert - TX-R 50381217 | |
| EDP # | 0769415 | |
| Weight (1 pc.) | 0.1 oz | 2.5 g |
| Product-Carbon-Footprint | F | |

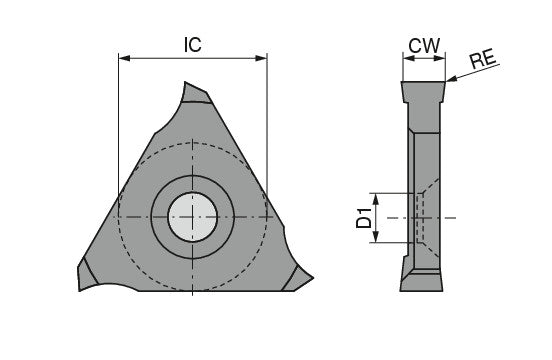

| designation | TX 161702 | |
| Corner radius / RE | 0.0059" | 0.150 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1555" | 3.950 mm |
| Cutting width / CW | 0.0669" | 1.700 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
