Ceratizit TXR 224302 CWK10 CoreLine - TX-R - TX-R 50381543 (0769421)
Ceratizit TXR 224302 CWK10 CoreLine - TX-R - TX-R 50381543 (0769421)
Couldn't load pickup availability
Ceratizit Article Number: 50381543
Ceratizit Material Number: 5038154300
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TXR 224302 CWK10 CoreLine - TX-R - TX-R 50381543 | |
| EDP # | 0769421 | |
| Weight (1 pc.) | 0.4 oz | 12.4 g |
| Product-Carbon-Footprint | F | |
| designation | TX 224302 | |

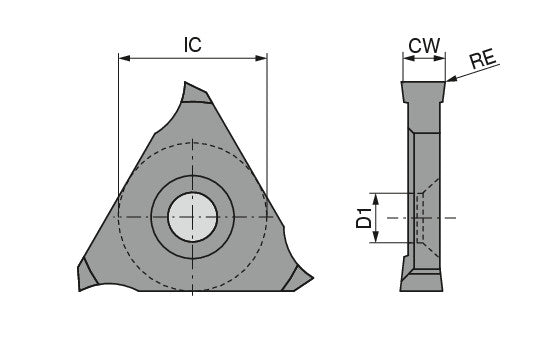

| Corner radius / RE | 0.0079" | 0.200 mm |
| Inscribed circle diameter / IC | 0.5118" | 13.000 mm |
| Fixing hole diameter / D1 | 0.2165" | 5.500 mm |
| Cutting width / CW | 0.1693" | 4.300 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
