Description
Ceratizit Article Number: 50734260
Ceratizit Material Number: 5073426000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

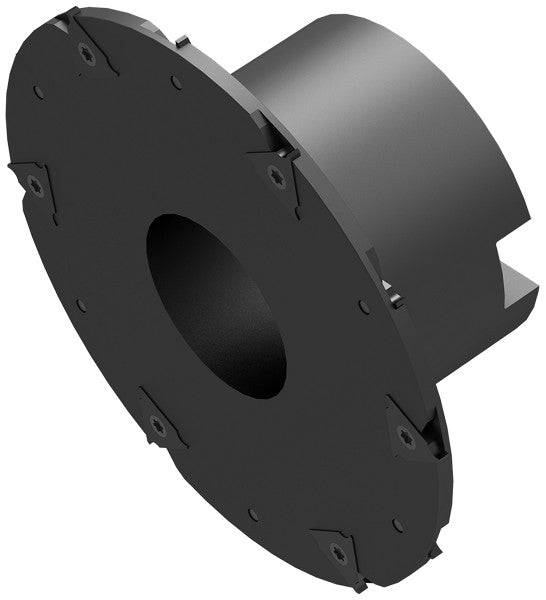

| Name | Ceratizit TX.ASF.160.R.03.Z8 Shell / Slot Milling And Parting Off Cutter 50734260 | |
| EDP # | 0769546 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 63.0 oz | 1778 g |
| Product-Carbon-Footprint | E | |

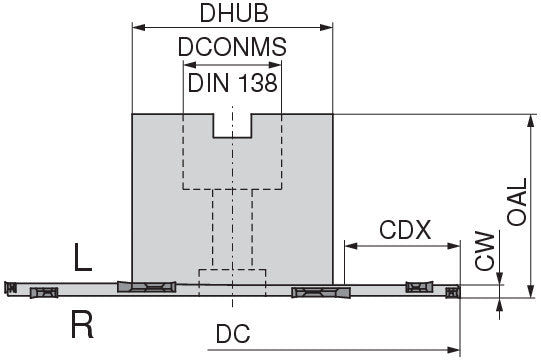

| Cutting diameter / DC | 62992.0000" | 1599996.800 mm |
| Cutting width / CW | 0.1181" | 3.000 mm |
| Face mounted insert count / ZNF | 8 | |
| Cutting depth maximum / CDX | 1.7323" | 44.000 mm |
| Mounting spigot diameter / DCONMS | 15748.0000" | 399999.200 mm |
| Hub diameter / DHUB | 27559.0000" | 699998.600 mm |
| Overall length / OAL | 19685.0000" | 499999.000 mm |
| Peripheral effective cutting edge count / ZEFP | 16 | |
| Insert | TX. 161702 | |
| Designation | TX.ASF.160.R.03.Z8 | |
| torque moment | 0,7 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
