Ceratizit H.M8-M10X1,25.HB.10.5,0.19,0.IK TIALN CoreLine Circular Drill Thread Milling Cutter ZBGF 50840080 (0769606)
Ceratizit H.M8-M10X1,25.HB.10.5,0.19,0.IK TIALN CoreLine Circular Drill Thread Milling Cutter ZBGF 50840080 (0769606)
Couldn't load pickup availability
Ceratizit Article Number: 50840080
Ceratizit Material Number: 5084008000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit H.M8-M10X1,25.HB.10.5,0.19,0.IK TIALN CoreLine Circular Drill Thread Milling Cutter ZBGF 50840080 | |
| EDP # | 0769606 | |
| Weight (1 pc.) | 2.0 oz | 58.0 g |
| Machining process - Main Application | Internal thread, right / left | |
| Thread | M8x1,25 - M10x1,25 | |
| Thread pitch / TP | 0.0492" | 1.250 mm |

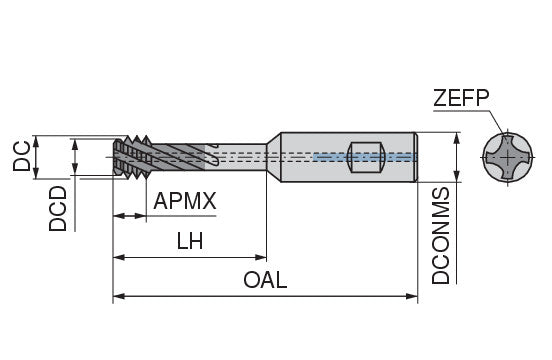

| Cutting diameter / DC | 0.2441" | 6.200 mm |
| Depth of cut maximum / APMX | 0.1969" | 5.000 mm |
| Shank length / LS | 1.5748" | 40.000 mm |
| Head length / LH | 0.7480" | 19.000 mm |
| Overall length / OAL | 2.7953" | 71.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Cutting diameter drilling part / DCD | 0.2205" | 5.600 mm |
| Coating name / Grade (Ceratizit) / COATN | TiCN | |
| Minimum Extension (DIN 6535 HA) | 1.1417" - 1.2205" | 29.000 - 31.000 mm |
Tool Form:
'E' form tools are multi-point thread mills with a fixed pitch.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
