Ceratizit MWN.27.HB.32.58,0.IK CoreLine - Circular Milling Cutter - 50843273 (0769639)
Ceratizit MWN.27.HB.32.58,0.IK CoreLine - Circular Milling Cutter - 50843273 (0769639)
Couldn't load pickup availability
Ceratizit Article Number: 50843273
Ceratizit Material Number: 5084327300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MWN.27.HB.32.58,0.IK CoreLine - Circular Milling Cutter - 50843273 | |
| EDP # | 0769639 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 24.0 oz | 692 g |

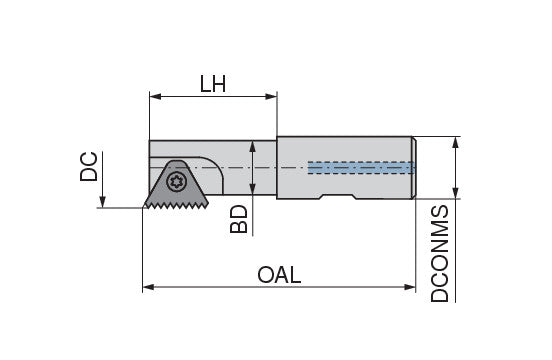

| Insert length / INSL | 1.0630" | 27.000 mm |
| Cutting diameter / DC | 1.4567" | 37.000 mm |
| Head length / LH | 2.2835" | 58.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2598" | 32.000 mm |
| Overall length / OAL | 4.7244" | 120.000 mm |
| Neck diameter (BD) / BD | 1.2205" | 31.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| torque moment | 9 Nm | |
Tool Form:
'E' form tools are multi-point thread mills with a fixed pitch.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
