Ceratizit EAW.23,85.HB.32.IR/IL.IK CoreLine - Circular Milling Cutter - 50848030 (0769646)
Ceratizit EAW.23,85.HB.32.IR/IL.IK CoreLine - Circular Milling Cutter - 50848030 (0769646)
Couldn't load pickup availability
Ceratizit Article Number: 50848030
Ceratizit Material Number: 5084803000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

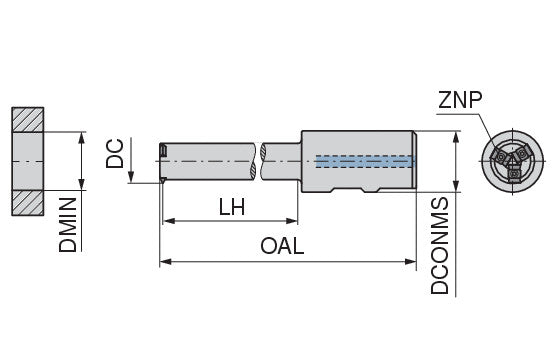

| Properties | ||
|---|---|---|
| Name | Ceratizit EAW.23,85.HB.32.IR/IL.IK CoreLine - Circular Milling Cutter - 50848030 | |
| EDP # | 0769646 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 20.0 oz | 576 g |
| Cutting diameter / DC | 0.9390" | 23.850 mm |
| Thread pitch range / TP | 1.5 - 4.0 | |
| Threads per inch range / TPI - R / TPI | 24 - 6 | |
| Head length / LH | 3.5433" | 90.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2598" | 32.000 mm |
| Overall length / OAL | 6.0630" | 154.000 mm |
| Peripheral mounted insert count / ZNP | 3.0000" | 76.200 mm |
| Bore Ø, min., Range / DMIN | 1.0039" | 25.500 mm |
| Cutting edge Ø - range / DC | 0.9390" | 23.850 mm |
| torque moment | 0.9 Nm | |
| Minimum Extension (DIN 6535 HA) | 3.6220" - 3.7008" | 92.000 - 94.000 mm |
Tool Form:
'E' form tools are multi-point thread mills with a fixed pitch.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
