Description
Ceratizit Article Number: 50849115
Ceratizit Material Number: 5084911500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit EWM.92,00.DIN69871-ADB50.IR/IL ModuThread Circular Milling Cutter 50849115 | |
| EDP # | 0769650 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 560.0 oz | 15883 g |

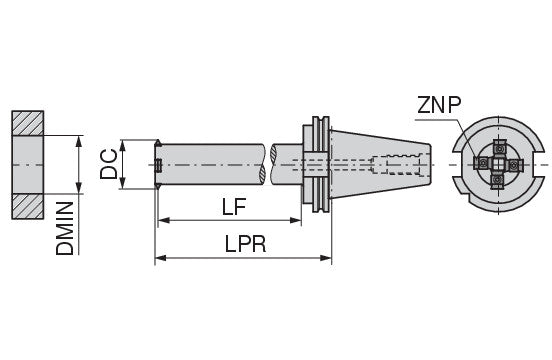

| Cutting diameter / DC | 3.6220" | 92.000 mm |
| Minimum bore diameter / DMIN | 3.9370" | 100.000 mm |
| Thread pitch range / TP | 0.0000" - 3.1496" | 0.000 - 80.000 mm |
| Threads per inch range / TPI - R / TPI | 4 | |
| Overall length / OAL | 195.5512" | 4967.000 mm |
| Peripheral mounted insert count / ZNP | 7 | |
| Protruding length / LPR | 15.5512" | 395.000 mm |
| Functional length / LF | 14.1732" | 360.000 mm |
| torque moment | 8 Nm | |
| Machine interface size | SK 50 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
